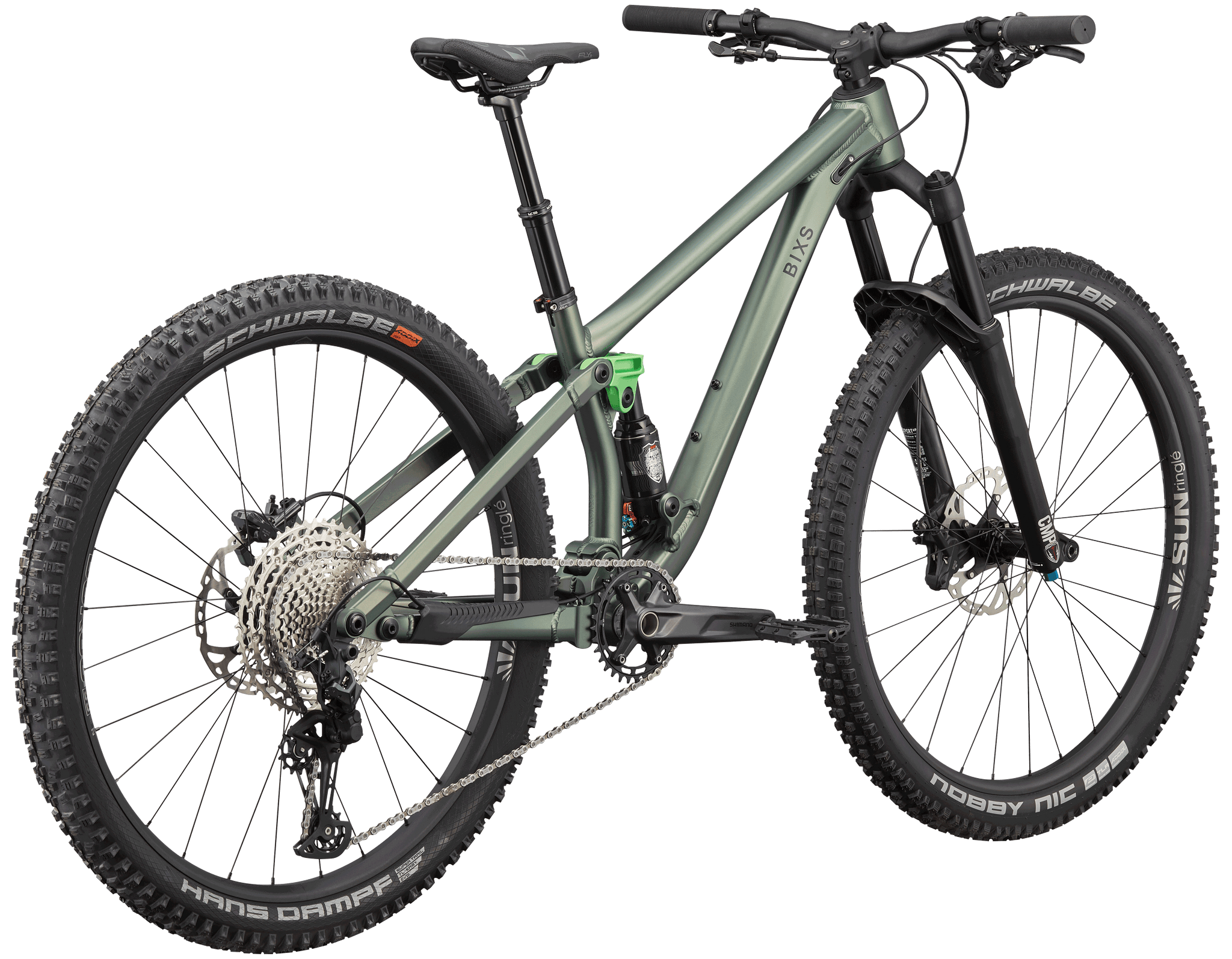

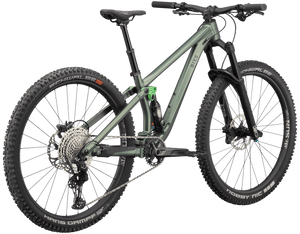

Specifications Traction 130

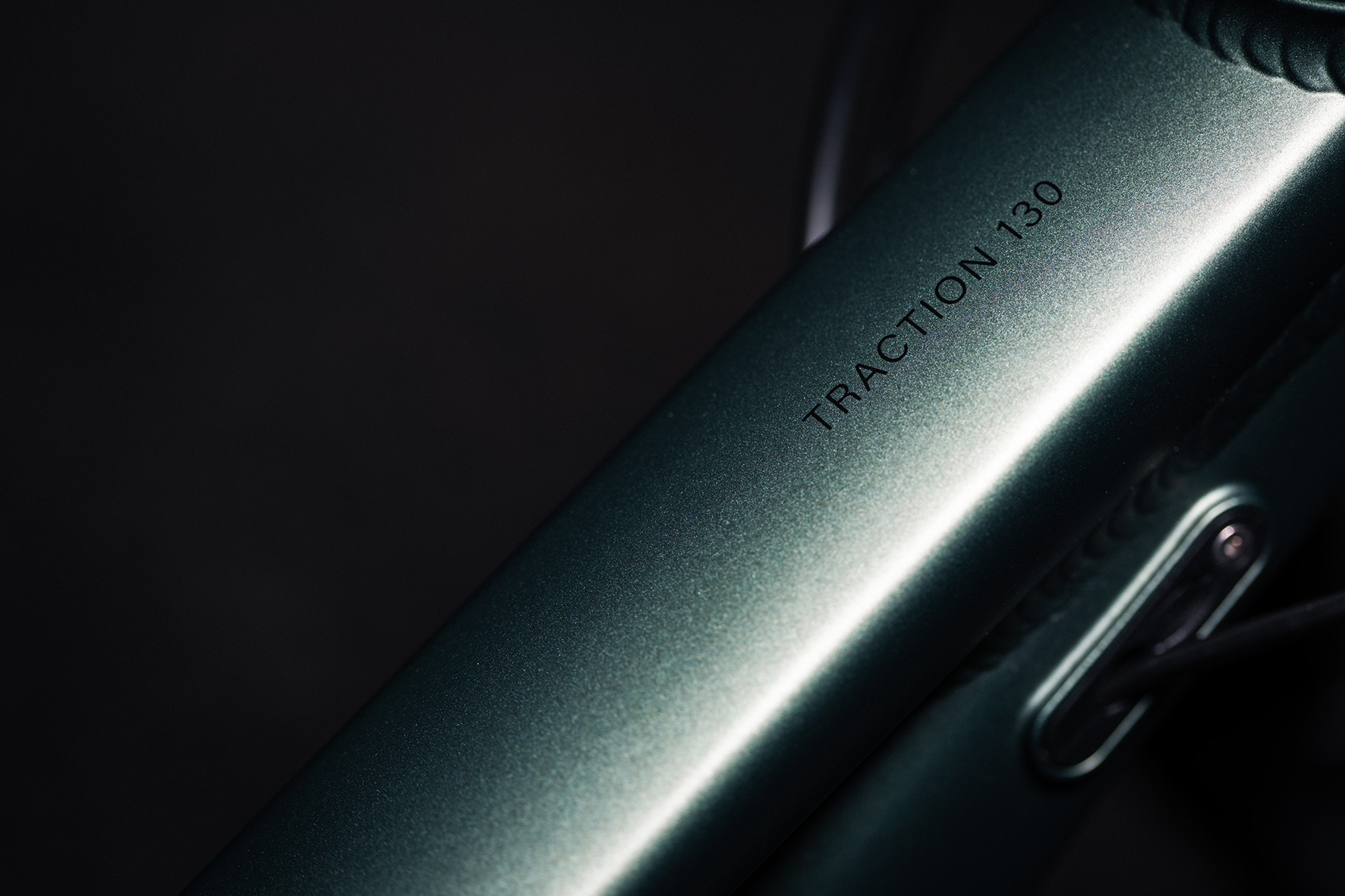

Frame TRACTION PREMIUM ALLOY FULLSUSPENSION, 120mm TRAVEL, 12x148mm BOOST, POST MOUNT DISC

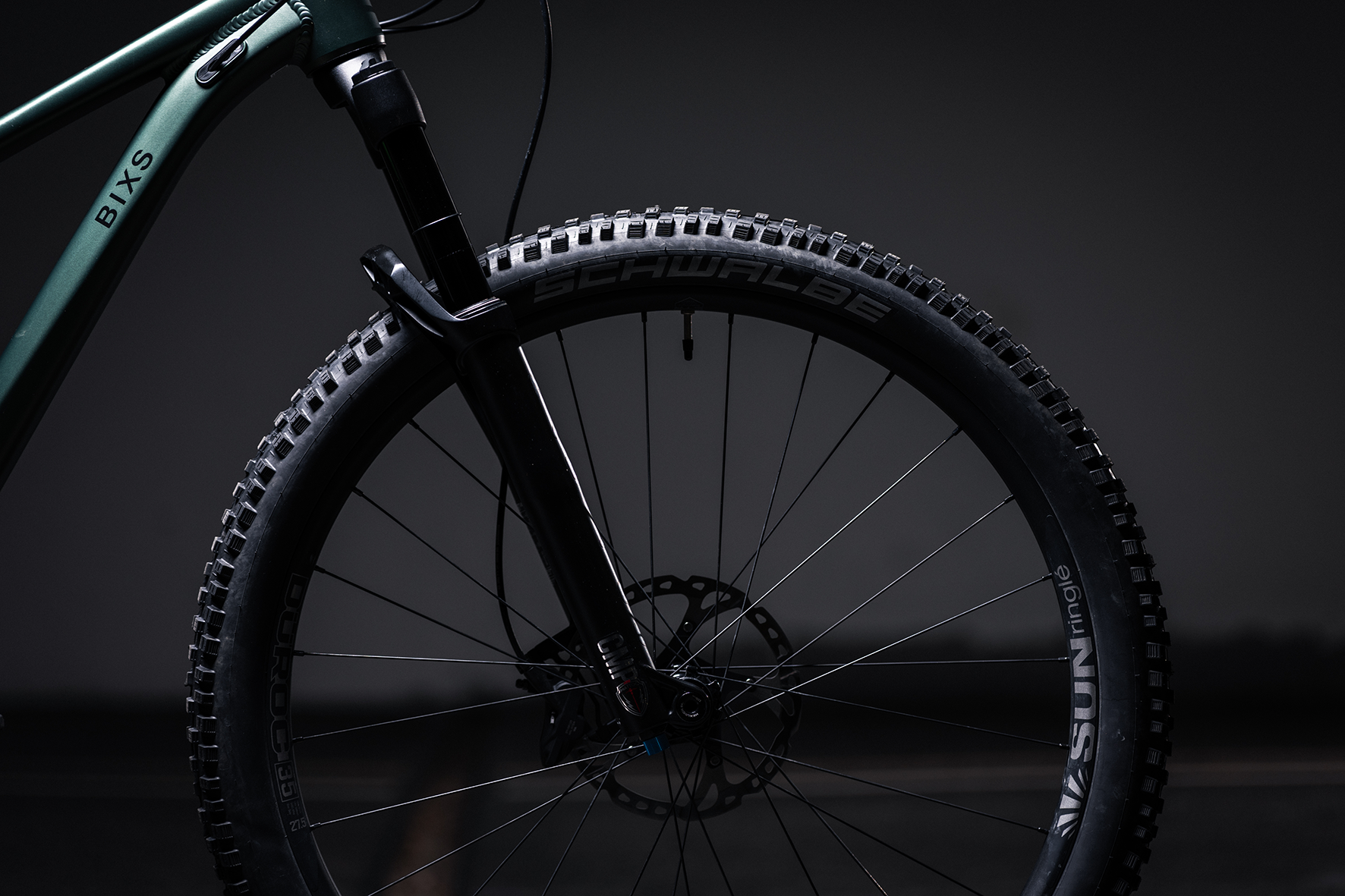

Fork MANITOU MATTOC COMP, 130mm TRAVEL, 15x110mm, 44mm OFFSET

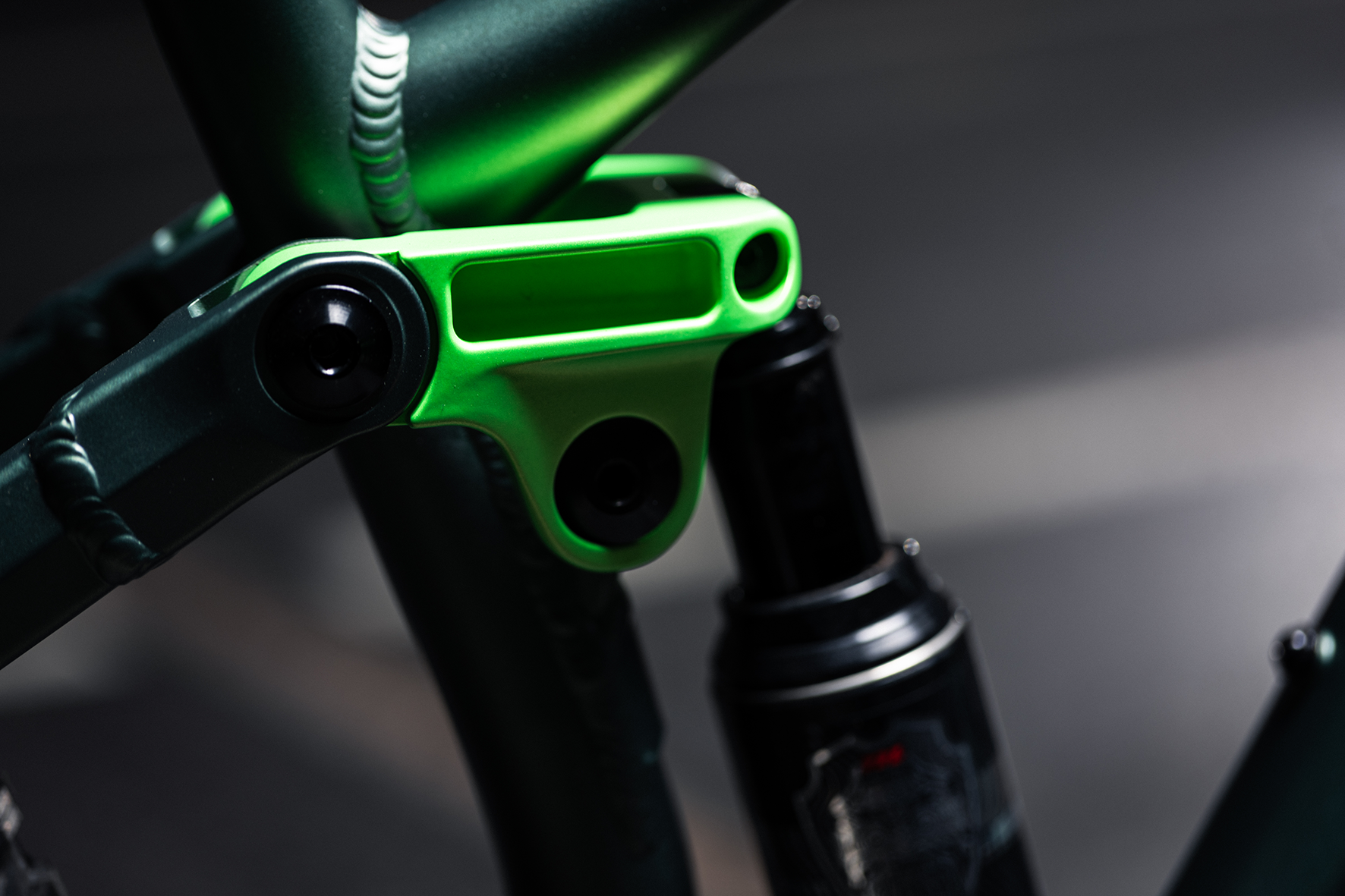

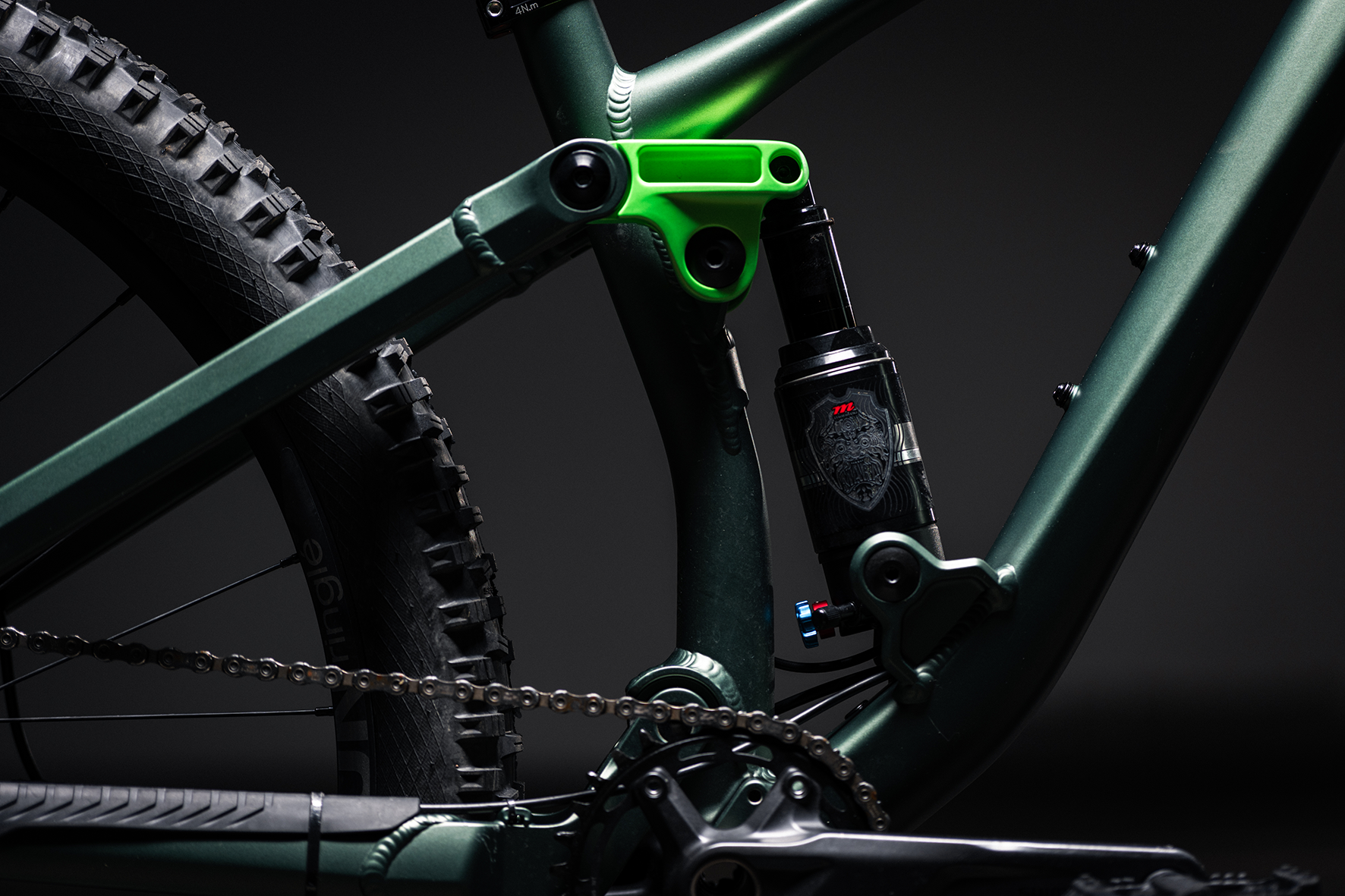

Shock MANITOU MARA, 2 POSITION LEVER, TRUNNION MOUNT, 165x45mm, HARDWARE: 22x8mm
Rear derailleur SHIMANO SLX RD-M7100-SGS, 12-SPEED
Shift lever SHIMANO SLX SL-M7100-IR
Crankset SHIMANO FC-MT511-1, CL52, 32T
Pedal SDG SLATE 90
Bottom bracket SHIMANO SM-BB52 BSA 73mm
Cassette SHIMANO DEORE CS-M6100-12, 10-51T
Chain SHIMANO DEORE CN-M7100
Brakes SHIMANO DEORE BL-M6100, BR-M6120 4-PISTON
Brake discs SHIMANO SM-RT86, 6 BOLT, 180/180MM
Front tire SCHWALBE NOBBY NIC PERFORMANCE, TWINSKIN, RACEGUARD, ADDIX, 27.5x2.35", TUBELESS READY
Rear tire

SCHWALBE HANS DAMPF, EVO, SUPER TRAIL, TLE, ADDIX, 27.5x2.35", TUBELESS READY

Stem BIXS STEM, 0°, 31.8mm CLAMP

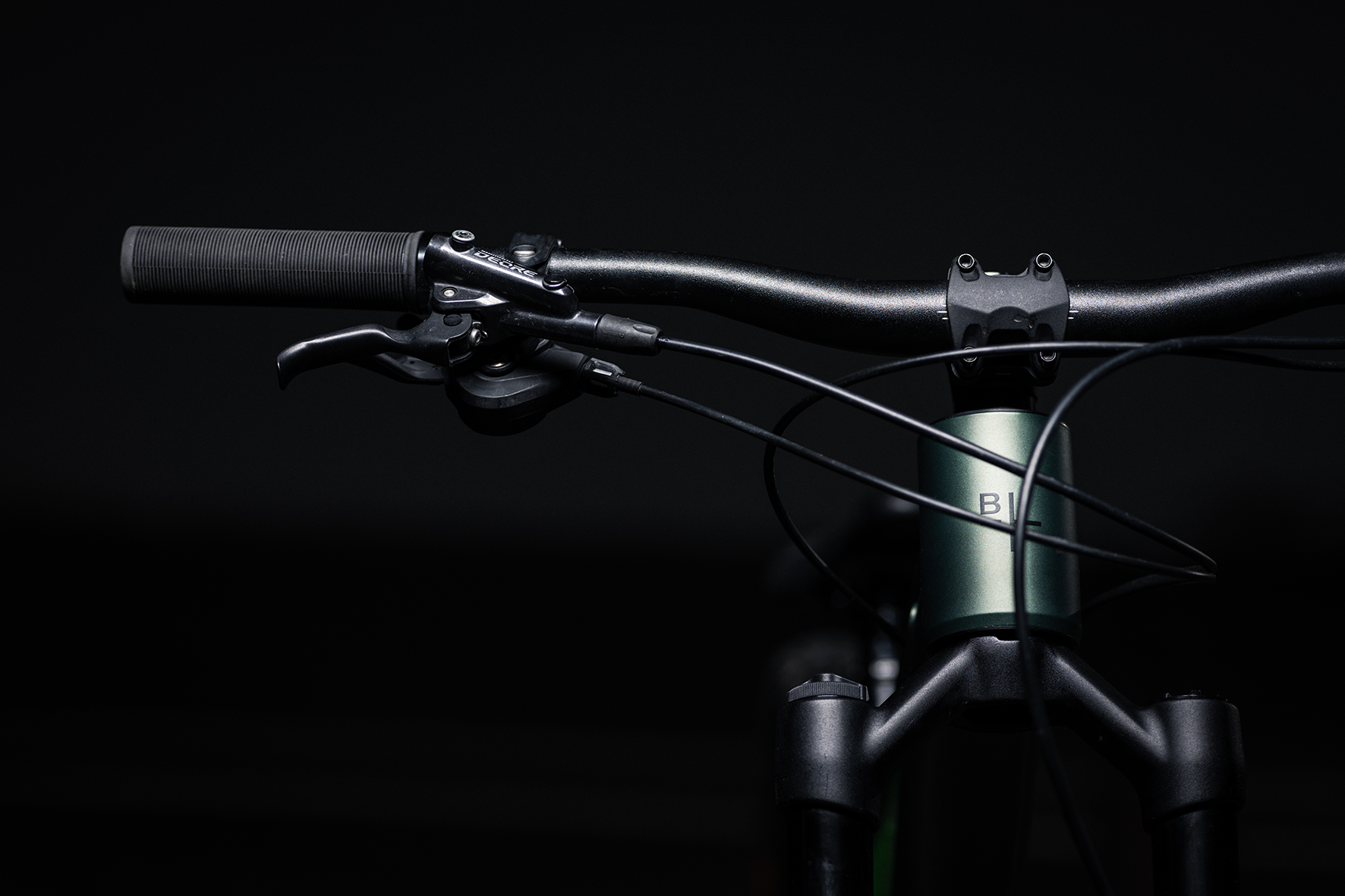

Handlebar BIXS RIZER BAR, 15mm RISE, 700mm
Seat post KIND SHOCK RAGE-I, ø31.6mm, 100mm
Saddle SDG FLY JR
Weight 14.7 KG

Geometry

SIZE Onesize
A Frame size mm 360
B Top tube horizontal mm 555
C Head tube mm 90
D Chainstays mm 435
E Seat angle degrees 74°
F Wheelbase mm 65.5°
G Wheelbase mm 1120.6
H Stem mm 40
I Stack mm 576.5
J Reach mm 390
K Bottom bracket height mm 323
L Crank length mm 165

A Frame size mm
B Top tube horizontal mm
C Head tube mm
D Chainstays mm
E Seat angle degrees
F Wheelbase mm
G Wheelbase mm
H Stem mm
I Stack mm
J Reach mm
K Bottom bracket height mm
L Crank length mm
