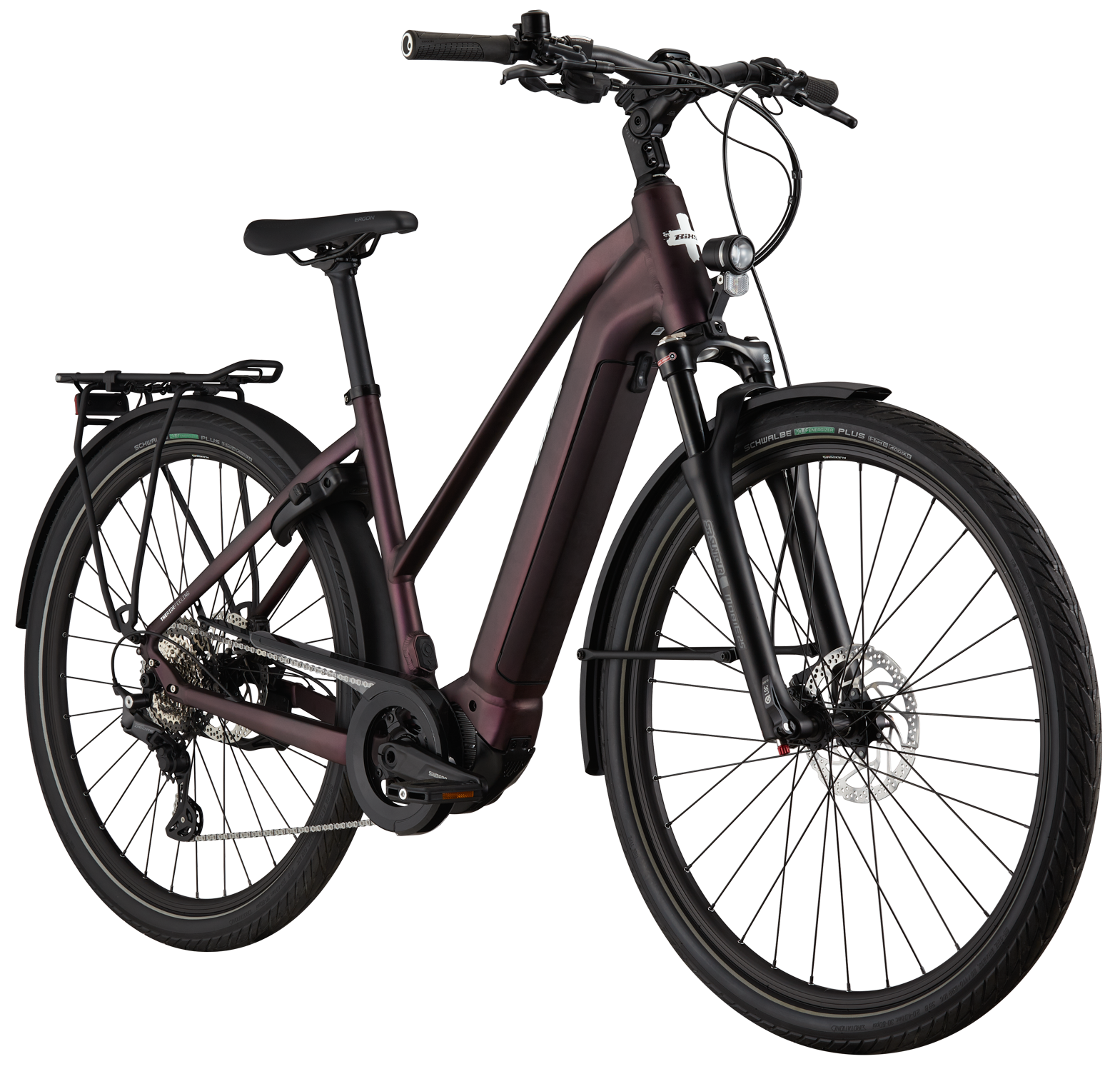

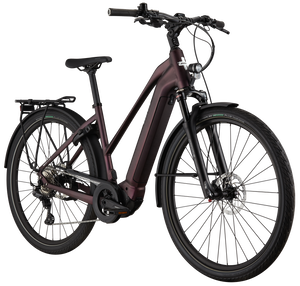

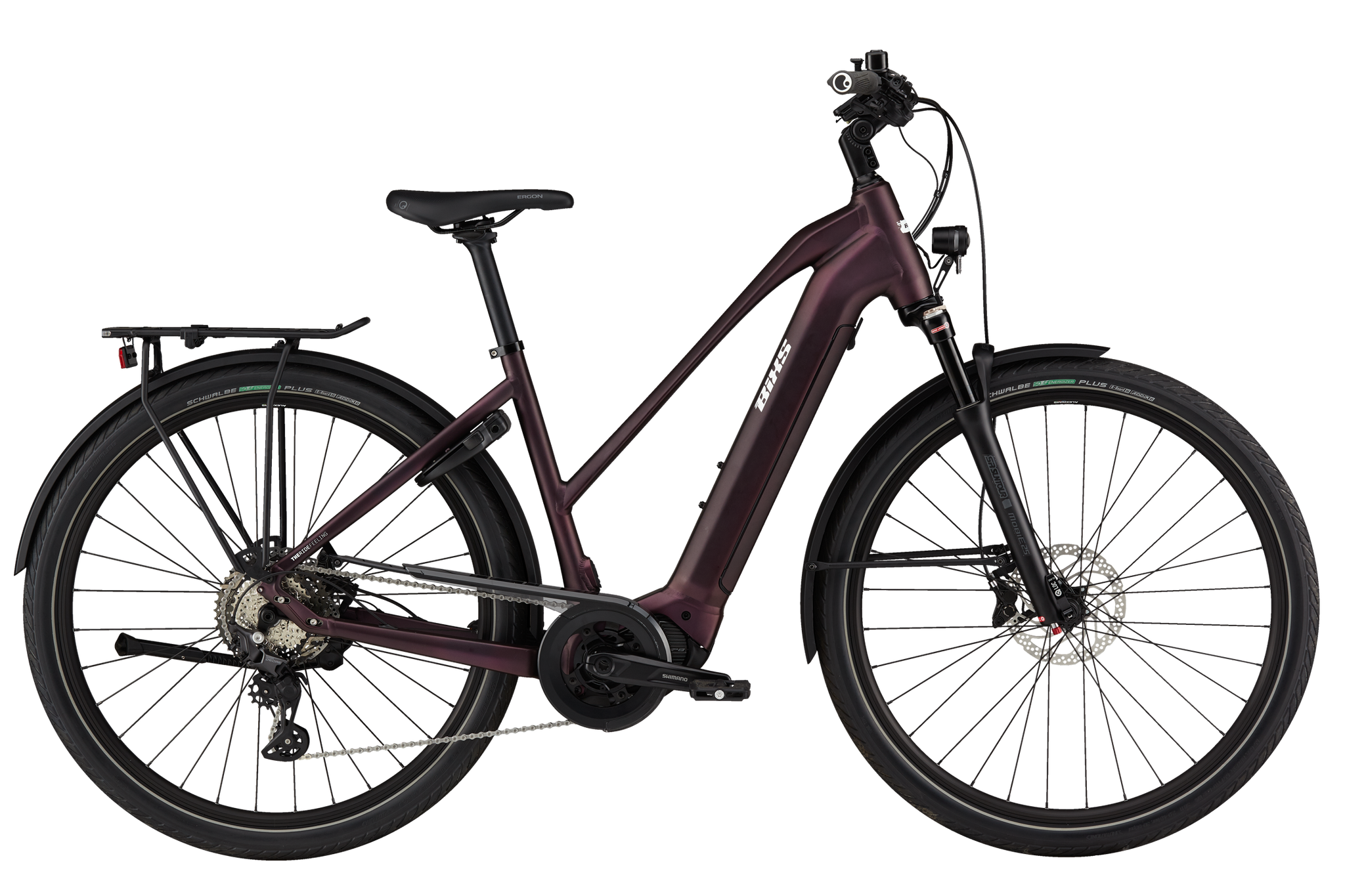

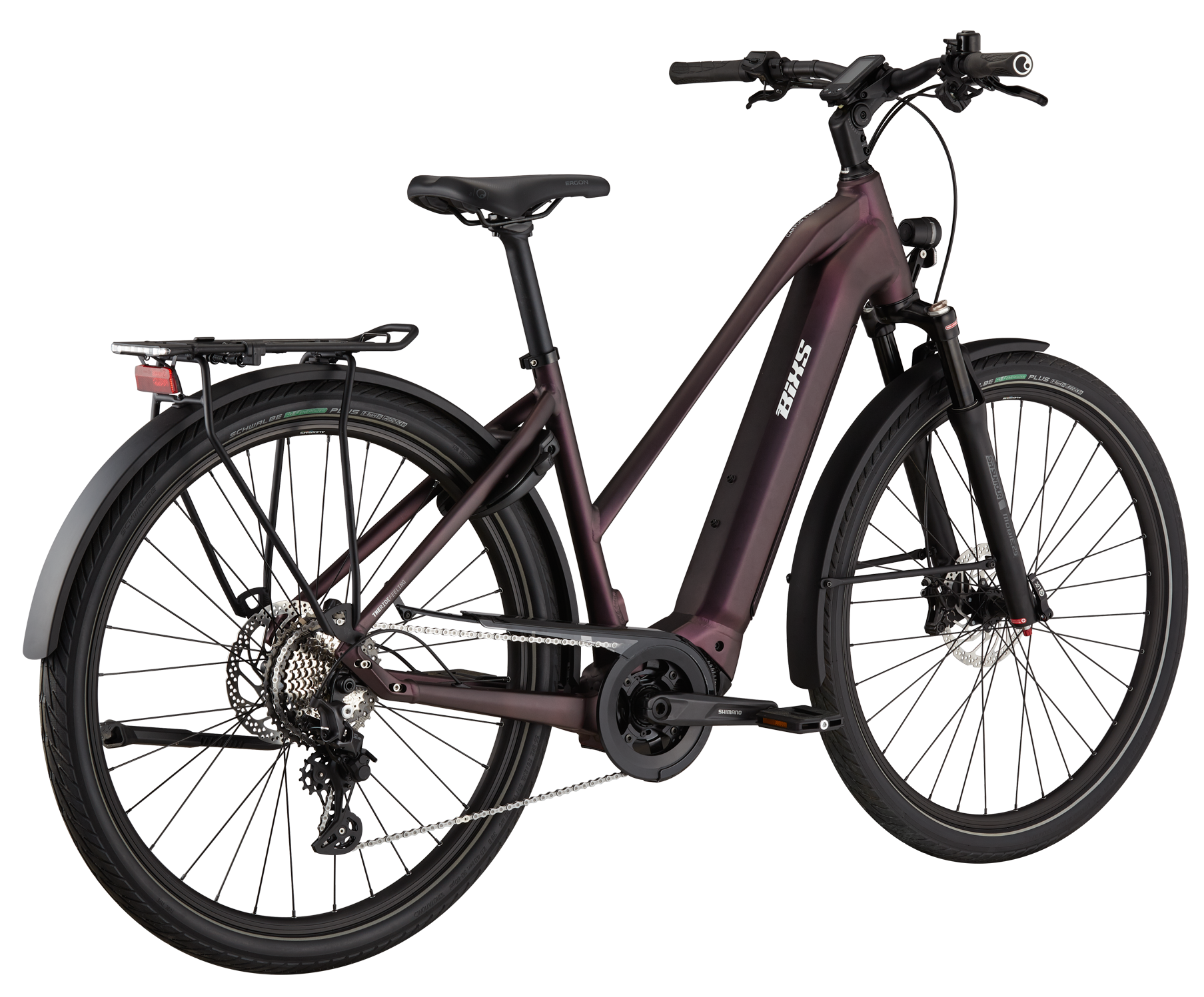

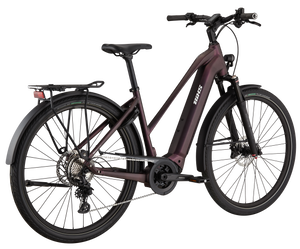

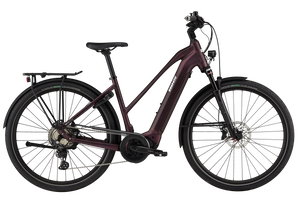

Campus-E10 Gor (Sale)
Campus-E10 Gor (Sale)
Campus-E10 Gor (Sale)
Campus-E10 Gor (Sale)

Campus-E10 Gor (Sale)

Always under power, always on the road. You want to get from A to B as fast and comfortably as possible in everyday life and as far as possible around the nearest lake at the weekend. The CAMPUS-E is a high-quality electric bike with integrated support and everything you need for a comfortable bike ride. Powerful Shimano Steps EP-8 motors and 630 or 500 Wh batteries. Get on, ride off and arrive relaxed.
CHF 3,890.00 CHF 4,590.00
Dark Purple
Which size fits me?

Frame sizes
149 – 163 cm: S
159 – 178 cm cm: M
174 - 188 cm: L

Where to test and buy?

BIXS retailer directory →

Tax included. Shipping calculated at checkout.
Campus-E10 Gor (Sale)
Campus-E10 Gor (Sale)
Campus-E10 Gor (Sale)

Campus-E

City - Country - River.

Learn more about the Campus-E +

Specifications Campus-E10 GOR

Frame E-TOURING CONCEPT, ALLOY 6061, GOR 700C
Fork SUNTOUR MOBIE 25 AIR, 700C, TAPERED, 15x100mm AXLE,  75mm TRAVEL, LOCKOUT
Motor SHIMANO STEPS EP8, 250 WATT
Batteries DARFON, 36V, 630Wh
Display SHIMANO SC-E6100
Assistance levels ECO, TRAIL, BOOST
E-bike speed 25 km/h
Rear derailleur SHIMANO RD-M5130 GS SHADOW PLUS DESIGN, 10-SPEED
Shift lever SHIMANO SL-M5130, WITH OPTICAL GEAR DISPLAY
Crankset SHIMANO STEPS FC-EM600, 38 TEETH
Pedal VP 831, INLEAD GRIP TREAD
Cassette SHIMANO CS-LG600, 11-43 THEETH, 10-SPEED
Chain SHIMANO CN-LG500 10-SPEED
Brakes SHIMANO BR-MT420, 4-PISTON HYDRAULIC DISC BRAKE, RESIN PADS, F:180mm, R:180mm ROTORS
Brake lever SHIMANO BL-MT402-3A
Front hub SHIMANO HB-MT410, 32 HOLES, 15x100mm THRU AXLE
Rear hub SHIMANO FH-MT400, 32 HOLES, 12x142mm THRU AXLE
Front tire SCHWALBE ENERGIZER PLUS, PERFORMANCE, GREEN-GUARD ADDIX 700x55C
Rear tire SCHWALBE ENERGIZER PLUS, PERFORMANCE, GREEN-GUARD ADDIX 700x55C
Stem ERGOTEC SEPIA AHEAD 50, ANGLE ADJUSTABLE, 31.8mm CLAMP
Handlebar BIXS HB-RB12L RIZER BAR, 700mm, 15°ANGLE, 15mm RISE, 31.8mm
Headset FSA NO.57E, 1-1/8" UPPER AND 1.5" LOWER BEARING WITH 12.3mm TOP COVER
Seat post BIXS SP-3D2, 350mm, 31.6mm
Saddle ERGON ST10
Rear light HERRMANS INTEGRATED REAR LIGHT ON CARRIER
Luggage carrier MASSLOAD BIXS CUSTOM WITH INTEGRATED REAR LIGHT
Mudguards BIXS ALLOY FENDER, 62mm WIDE, 700C
Weight 26.3 KG

Geometry

Size A B C D E F G H I J K L
S 440 590 180 460 74° 69° 1136 90 678 405 300 170
M 480 595 180 460 74° 69° 1146 90 678 410 300 170
L 520 600 180 460 74° 69° 1154 90 678 415 300 170

A Frame size
B Top tube horizontal (mm)
C Head tube (mm)
D Chainstay length (mm)
E Seat tube angle
F Head tube angle
G Wheel base (mm)
H Stem (mm)
I Stack (mm)
J Reach (mm)
K Bottom bracket height (mm)
L Crank length (mm)
