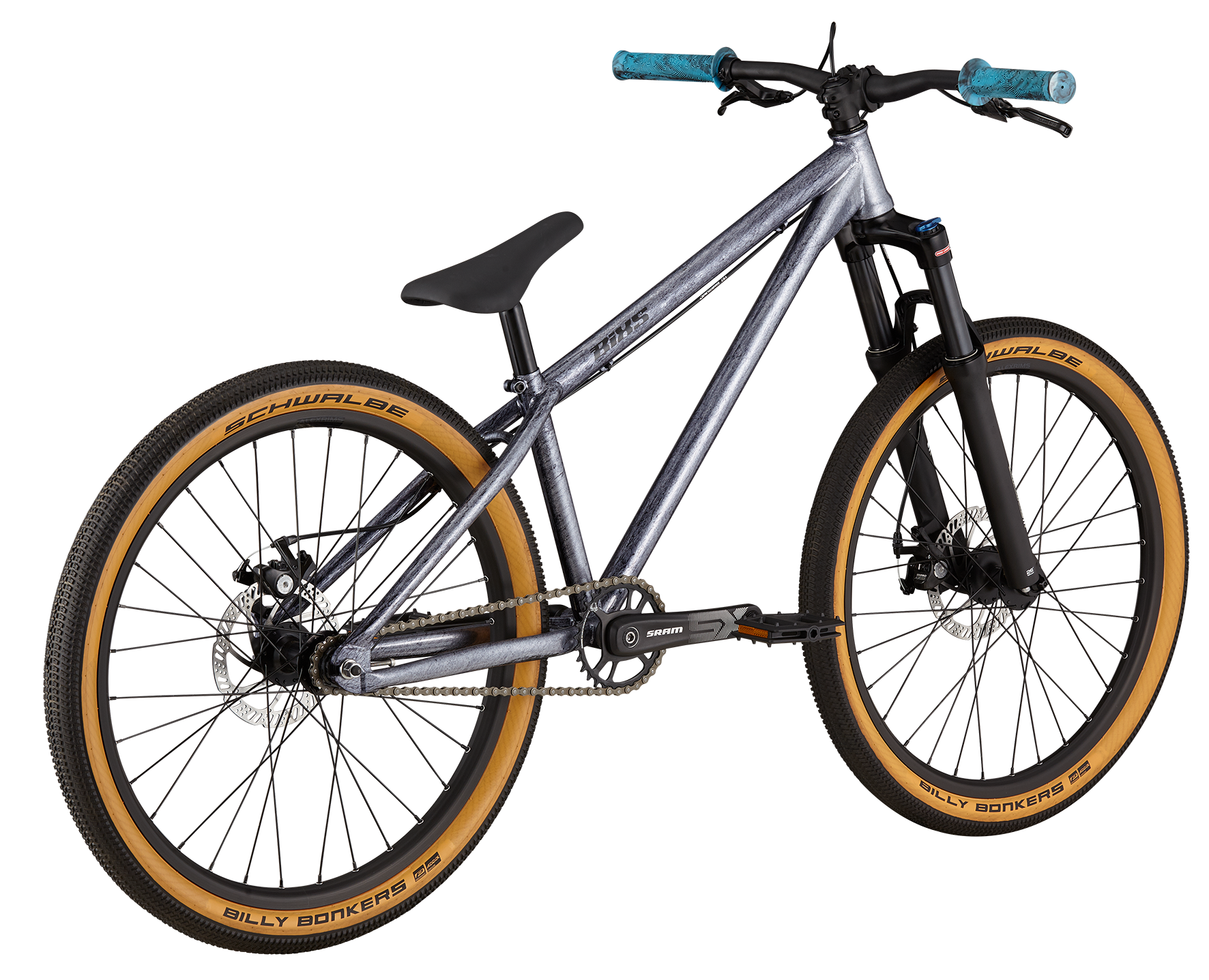

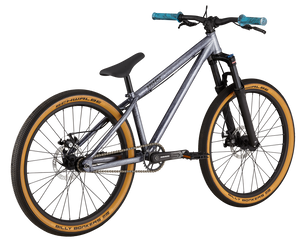

Stomp 24

So clean and yet so clever. We call it simplexity. A sophisticated geometry ensures more flow. Bolted bottom bracket cups (BSA) and adjustable dropouts are the new carefree package and keep your head clear for the next session. But the absolute highlight is the well-shaped down tube of the newly designed steel frame.

CHF 999.00

Unit price: per

Wavy Blue

Which size fits me?

Frame size:
Onesize (24", 130cm+)

Where to test and buy?

Stomp

Jump, flow, stomp, repeat.

Learn more about the Stomp +

Specifications Stomp 24

Frame	PUMPTRACK GEOMETRY, SINGLE SPEED STEELFRAME, 24"
Fork	SUNTOUR XCR32 COIL RL 26", TAPERED, 100mm TRAVEL, LOCKOUT
Crankset	SRAM SX EAGLE, POWER SPLINE, 30 TEETH
Pedal	VP 538
Bottom bracket	SRAM POWER SPLINE 118/68
Cassette	FORMULA SINGLE SPROCKT, 13 THEETH
Chain	KMC Z1 SINGLE SPEED
Brakes	TEKTRO MD-M300 MECHANICAL DISC BRAKE , 160mm ROTORS
Brake lever	TEKTRO ML520 RS
Rims	ALEXRIMS SUPRA BH, 32 HOLES, INNER WIDTH 25mm, 24"
Front hub	SHIMANO HB-M475, 32 HOLES, QR
Rear hub	FORMULA DC-52, 32 HOLES, 10x135mm AXLE WITH FLANGE NUTS
Front tire	SCHWALBE BILLY BONKERS PERFORMANCE, 24x2.10"
Rear tire	SCHWALBE BILLY BONKERS PERFORMANCE, 24x2.10"
Stem	BIXS S-105, 0°ANGLE, 31.8mm CLAMP
Handlebar	BIXS RIZER BAR, 700mm, 9°ANGLE, 15mm RISE, 31.8mm
Headset	FSA NO.42/47 ACB, 1-1/8" UPPER AND 1.5" LOWER BEARING
Seat post	BIXS VL-7122, 200mm, 27.2mm
Saddle	BIXS VL-7122
Frame size	24"
Weight	12.2 KG

Geometry

Size	A	B	C	D	E	F	G	H	I	J	K	L
24"	300	529	100	370	73	69	982	40	530	367	-	155

A Frame size
B Top tube horizontal (mm)
C Head tube (mm)
D Chainstay length (mm)
E Seat tube angle
F Head tube angle
G Wheel base (mm)
H Stem (mm)
I Stack (mm)
J Reach (mm)
K Bottom bracket height (mm)
L Crank length (mm)
