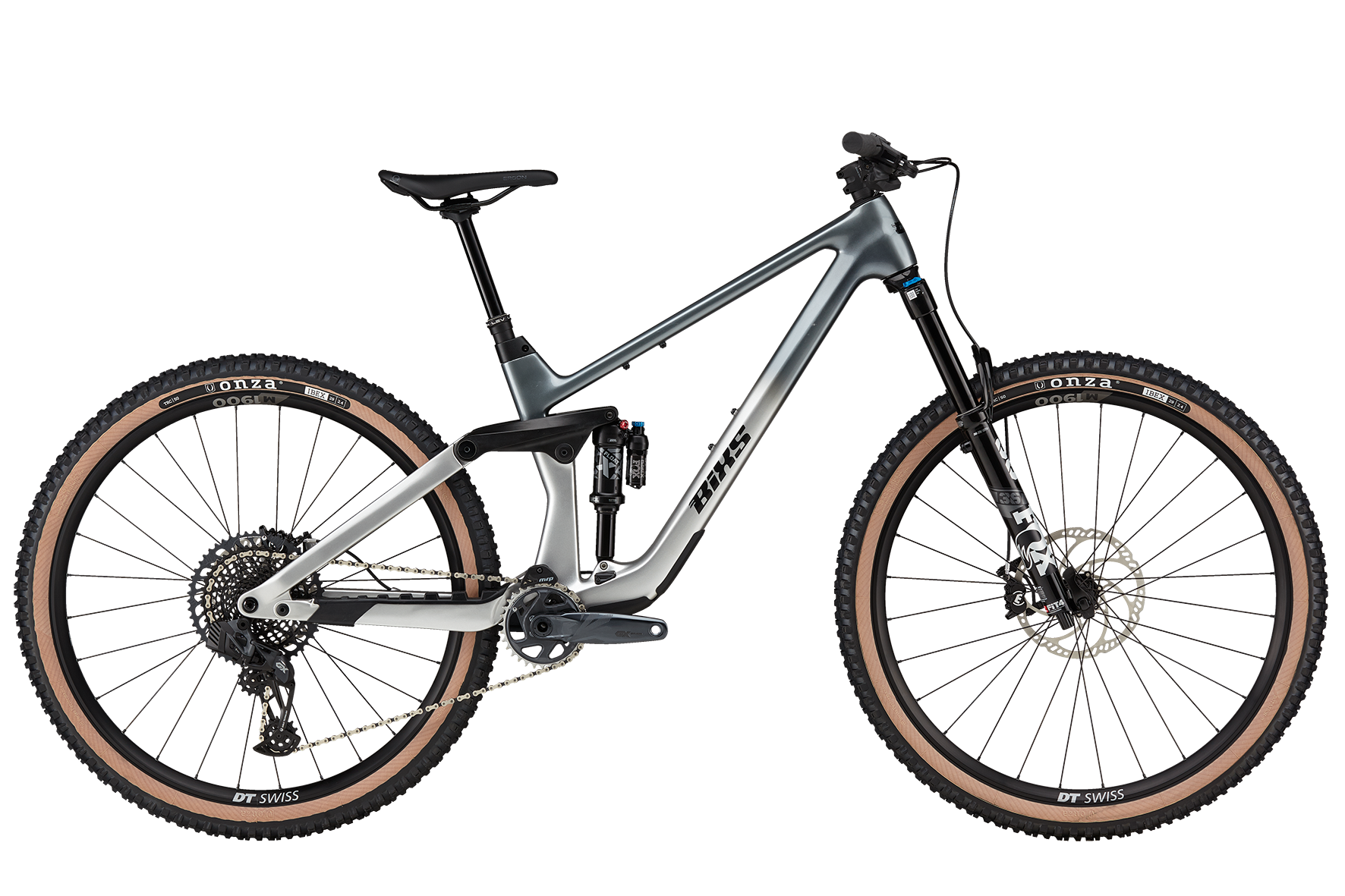

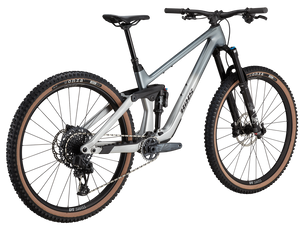

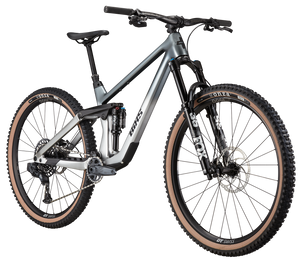

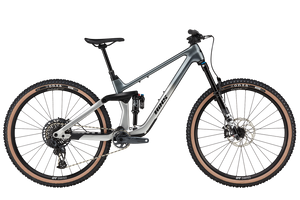

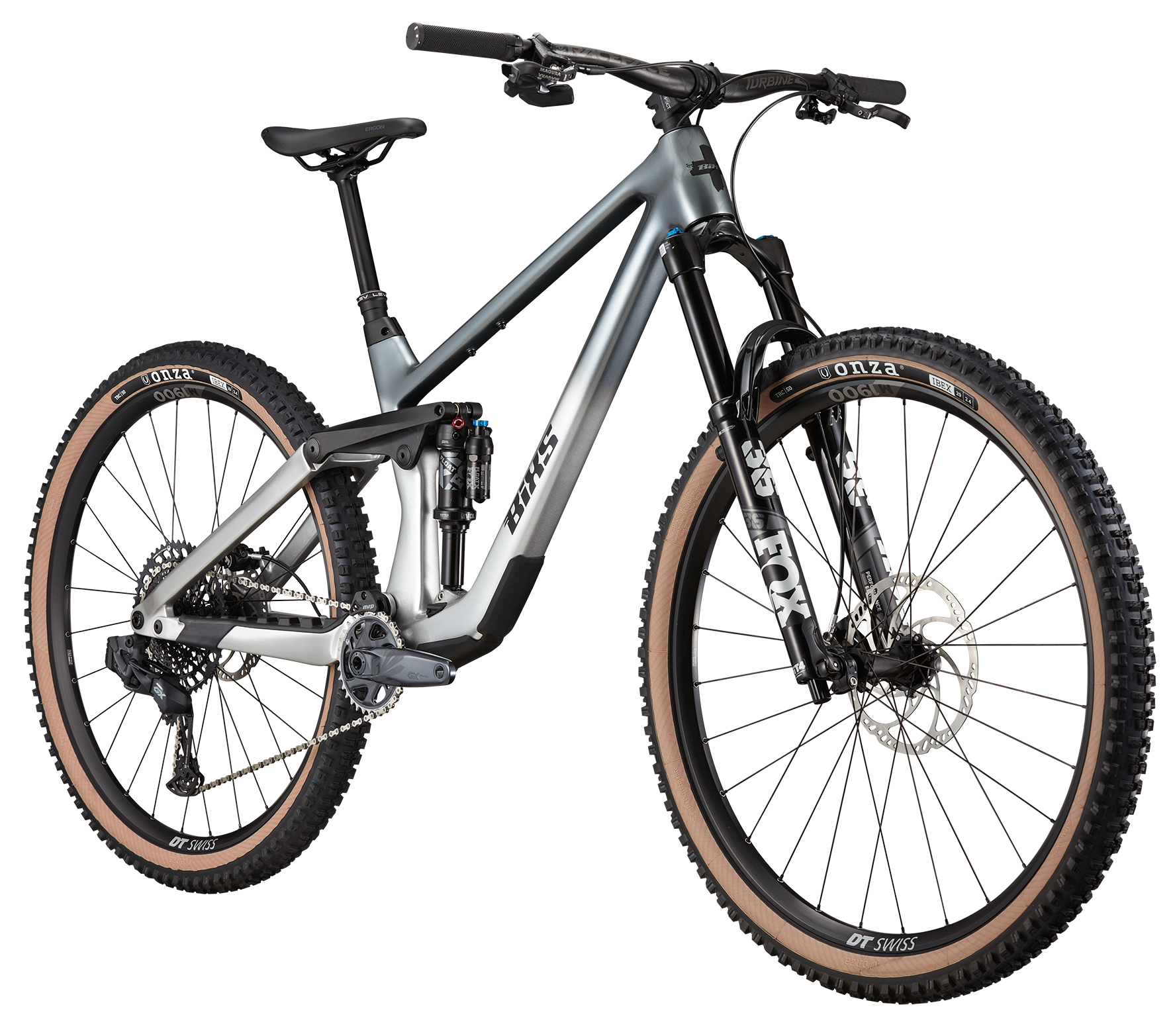

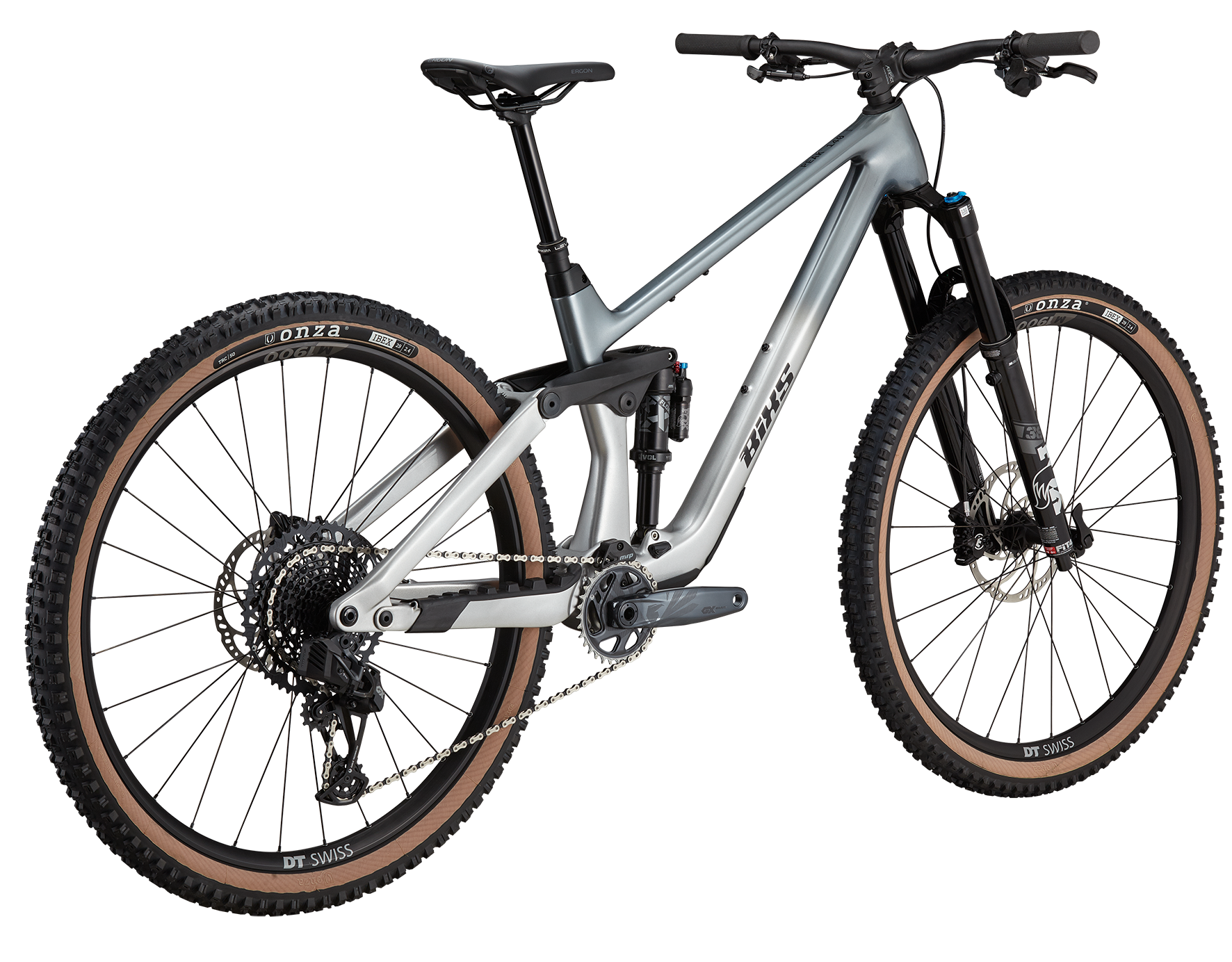

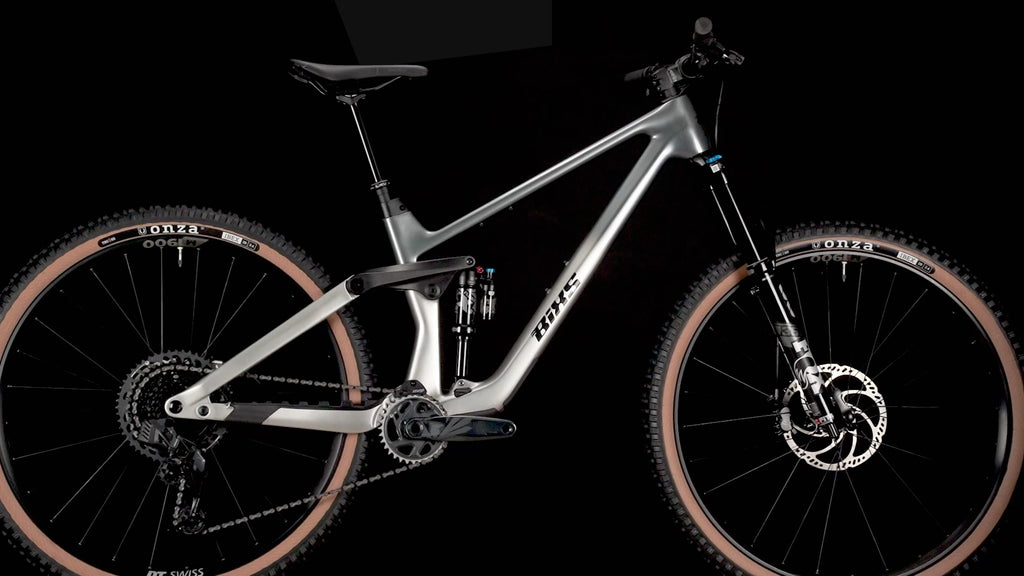

Peak 140 (Sale)

The new PEAK - in German "Gipfel" - gets you right there. This all-mountain bike has 150 millimetres of suspension travel and is equipped with 29-inch wheels. It is made for summiteers. The modern geometry makes long climbs pleasant and saves energy for the descent. That's what the PEAK series is made for. It impresses with its playful steering behavior and pure riding fun. With this bike, you can master any alpine cross with confidence thanks to the suspension travel reserves. A 12-speed gear system and potent brakes are a must.

CHF 5,990.00 ~~CHF 6,990.00~~

Unit price: per

Black - Silver

Which size fits me?

Frame sizes
149 – 163 cm: S
159 – 178 cm cm: M
174 - 188 cm: L
185 - 200 cm: XL

Where to test and buy?

Peak

Enter new areas.

Learn more about the Peak +

Specifications Peak 140

Frame	TRAIL GEOMETRY, FULL CARBON FRAME, 140mm TRAVEL, DROPOUT 148x12mm BOOST, 29"
Fork	FOX 36 FLOAT PERFORMANCE ELITE, 150mm TRAVEL
Shock	FOX FLOAT X PERFORMANCE ELITE, 2 POSITION LEVER 230x57.5, HARDWARE: 30/20mmx8mm
Rear derailleur	SRAM GX EAGLE AXS, 12-SPEED
Shift lever	SRAM EC AXS CONTROLLER RIGHT HAND ROCKER, 2 BUTTON, 12-SPEED
Crankset	SRAM GX EAGLE BOOST, DUB, S: 30 THEETH, OTHERS 32 TEETH
Bottom bracket	SRAM BB DUB BSA 73 MTB
Cassette	SRAM XG-1295 EAGLE, 10-52 TEETH, 12-SPEED BLACK
Chain	SRAM CN-GX EAGLE
Brakes	MAGURA MT5, 4-PISTON HYDRAULIC DISC BRAKE, ROTORS F:203mm, R:180mm
Brake lever	MAGURA MT5, 1-FINGER HC ALUMINIUM LEVER BLADE
Front hub	DT SWISS WHEELSET SPLINE M-1900, 28 HOLES, 15x110mm THRU AXLE
Rear hub	DT SWISS WHEELSET SPLINE M-1900, 28 HOLES, 12x148mm BOOST, THRU AXLE
Front hub	ONZA IBEX, KEVLAR FOLDABLE, TUBELESS READY, 29x2.4"
Rear hub	ONZA IBEX, KEVLAR FOLDABLE, TUBELESS READY, 29x2.4"
Stem	RACE FACE AEFFECT R, 0°ANGLE, 35mm CLAMP
Handlebar	RACE FACE TURBINE R, 780mm, 20mm RISE, 8° BACKSWEEP, 35mm
Headset	ACROS CUSTOMIZED FOR INTEGRATED CABLE ROUTING, 1.5" BLOCK LOCK
Seat post	KIND SHOCK LEV INTEGRA, S: 100mm, M: 125mm, L: 150mm, XL: 175mm TRAVEL, SHIMANO REMOTE, 31.6mm
Saddle	ERGON SM10 SPORT MAN
Weight	13.9 KG

Geometry

Size	A	B	C	D	E	F	G	H	I	J	K	L
S	370	566	90	440	77.4	65.4	1179	40	612	430	336	165
M	400	598	100	440	77.4	65.4	1213	40	620	459	336	170
L	430	632	115	440	77.4	65.4	1250	40	634	489	336	170
XL	490	666	135	450	77.4	65.4	1288	50	652	520	336	170

A Frame size
B Top tube horizontal (mm)
C Head tube (mm)
D Chainstay length (mm)
E Seat tube angle
F Head tube angle
G Wheel base (mm)
H Stem (mm)
I Stack (mm)
J Reach (mm)
K Bottom bracket height (mm)
L Crank length (mm)
