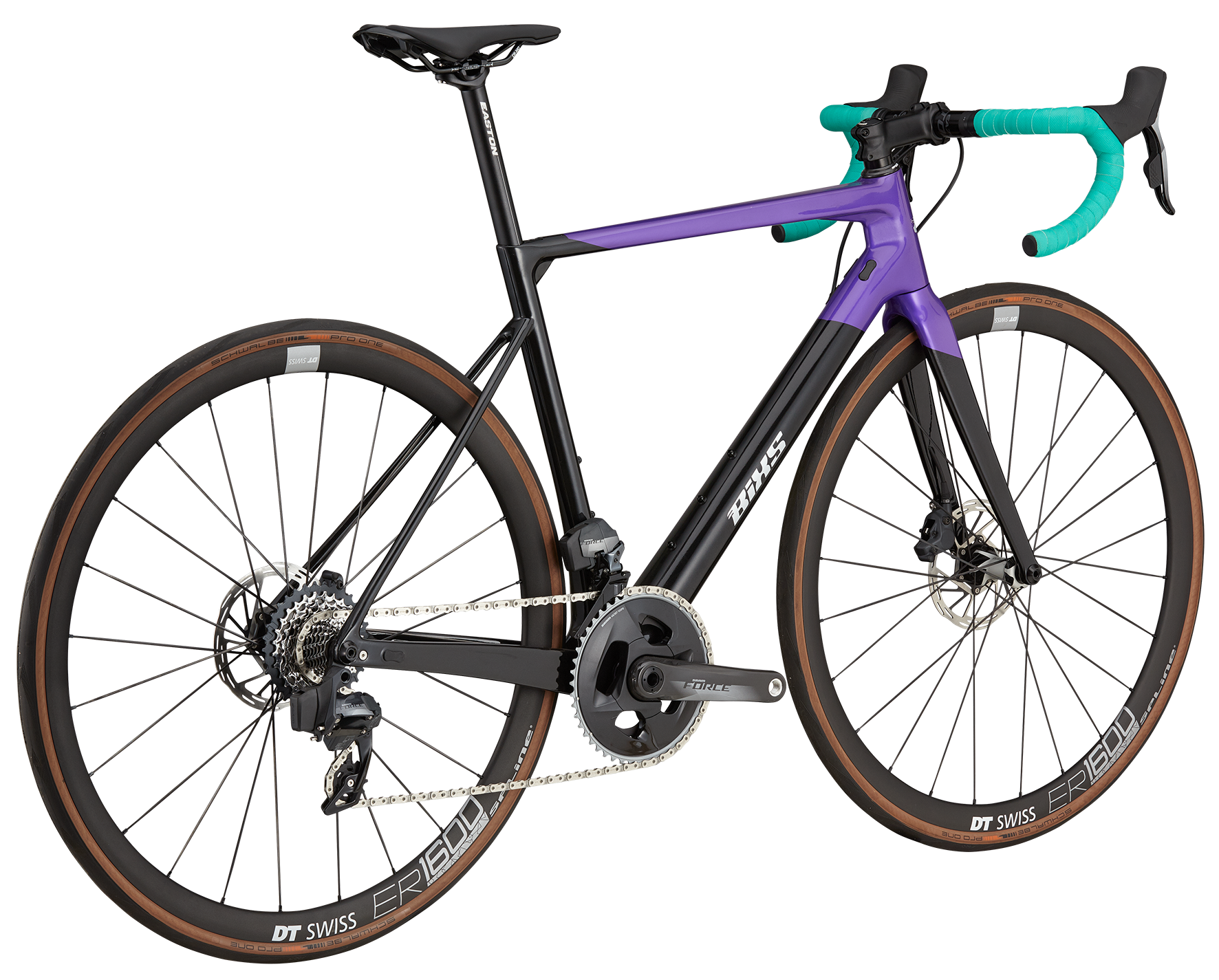

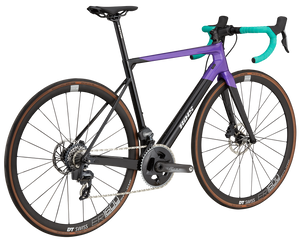

Specifications Gran Turismo 1

Frame DYNAMIC ROAD GEOMETRY, SUPERLITE CARBON FOR DISC BRAKE, 700C
Fork FULL CARBON ROAD FORK, 12x100mm THRU AXLE
Rear derailleur SRAM FORCE ETAP AXS, 12-SPEED
Front derailleur SRAM FORCE ETAP AXS
Shift lever SRAM FORCE ETAP AXS CARBON LEVER
Crankset SRAM FORCE, CARBON CRANKARM, 48-35 THEETH
Bottom bracket SRAM BB DUB PF 86.5 ROAD
Cassette SRAM XG-1270 FORCE, 10-33 TEETH, 12-SPEED
Chain SRAM FORCE 12-SPEED
Brakes SRAM FORCE, HYDRAULIC DISC BRAKE, F:160mm, R:160mm ROTORS
Brake lever SRAM FORCE ETAP AXS CARBON LEVER
Front hub DT SWISS WHEELSET ER 1600 SPLINE, 12x100mm THRU AXLE
Rear hub DT SWISS WHEELSET ER 1600 SPLINE, 12x142mm THRU AXLE
Front tire SCHWALBE PRO ONE EVO SUPER RACE, V-GUARD, TLE 700x28C
Rear tire SCHWALBE PRO ONE EVO SUPER RACE, V-GUARD, TLE 700x28C
Stem EASTON EA50, 7°ANGLE, 31.8mm CLAMP
Handlebar EASTON EA70 ROAD ALLOY, 31.8mm
Headset FSA ORBIT C33 NO 44 CF, 1 1/8" UPPER AND 1 1/4" LOWER BEARING
Seat post EASTON EA50, 350mm, 27.2mm
Saddle BIXS VL-1A47
Weight 8.4 KG

Geometry

Size A B C D E F G H I J K L
XS 430 505 100 415 74.5 70.5 963 90 504 365 - 170
S 467 530 120 415 74 72.5 967 90 530 378 - 172.5
M 498 545 140 415 73.5 73 975 100 545 384 - 172.5
L 518 560 160 415 73 73 985 100 565 388 - 175
XL 537 575 180 415 73 73 1000 110 584 397 - 175

A Frame size
B Top tube horizontal (mm)
C Head tube (mm)
D Chainstay length (mm)
E Seat tube angle
F Head tube angle
G Wheel base (mm)
H Stem (mm)
I Stack (mm)
J Reach (mm)
K Bottom bracket height (mm)
L Crank length (mm)
