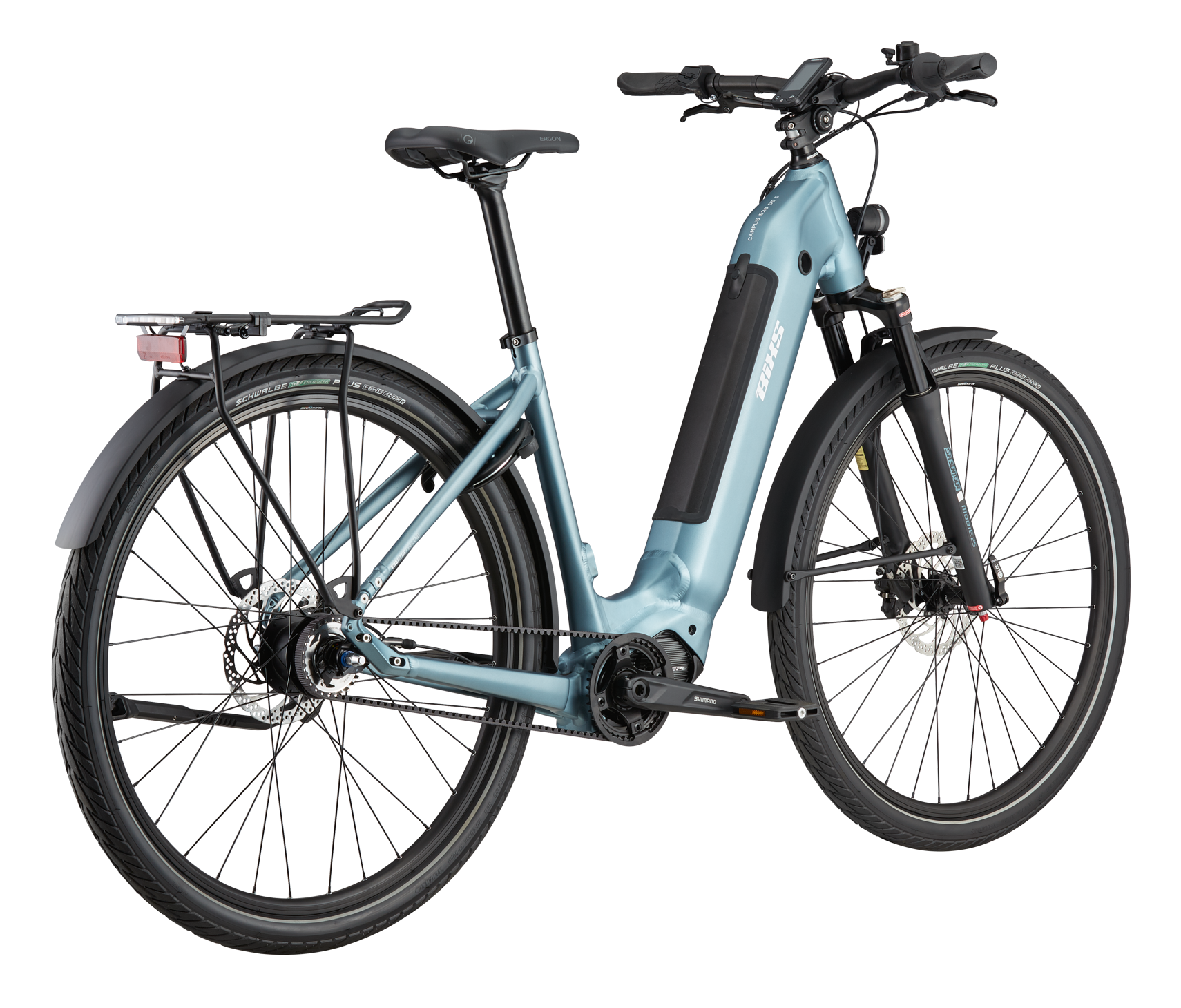

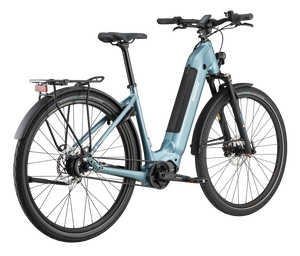

Campus-E20 Di (Sale)

Always under power, always on the road. You want to get from A to B as fast and comfortably as possible in everyday life and as far as possible around the nearest lake at the weekend. The CAMPUS-E is a high-quality electric bike with integrated support and everything you need for a comfortable bike ride. Powerful Shimano Steps EP-8 motors and 630 or 500 Wh batteries. Get on, ride off and arrive relaxed.

CHF 3,890.00 ~~CHF 4,590.00~~

Unit price: per

Pastel Blue

Which size fits me?

Frame sizes
149 – 163 cm: S
159 – 178 cm cm: M
174 - 188 cm: L

Where to test and buy?

Campus-E

City - Country - River.

Learn more about the Campus-E +

Specifications Campus-E20 DI

Frame	E-TOURING CONCEPT, ALLOY 6061, DI 700C
Fork	SUNTOUR MOBIE 25 AIR, 700C, TAPERED, 75mm TRAVEL, LOCKOUT
Motor	SHIMANO STEPS EP8, 250 WATT
Batteries	DARFON, 36V, 630Wh
Display	SHIMANO SC-E6100
Assistance levels	ECO, TRAIL, BOOST
E-bike speed	25 km/h
Rear derailleur	SHIMANO NEXUS, SG-C7000-5D WITH INTERNAL HUB GEAR, 5-SPEED
Shift lever	SHIMANO NEXUS SL-C7000-5, REVO SHIFTER
Crankset	SHIMANO STEPS FC-EM600, 39 TEETH
Pedal	VP 831, INLEAD GRIP TREAD
Cassette	GATES SINGLE SPROCKET, 28 THEETH
Brakes	SHIMANO BR-MT200, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:180mm, R:180mm ROTORS
Brake lever	SHIMANO BL-MT201
Front hub	SHIMANO HB-MT410, 32 HOLES, 15x100mm THRU AXLE
Rear hub	SHIMANO NEXUS, SG-C7000-5D, INTERNAL HUB GEAR, 32 HOLES, QR
Front tire	SCHWALBE ENERGIZER PLUS, PERFORMANCE, GREEN-GUARD ADDIX 700x55C
Rear tire	SCHWALBE ENERGIZER PLUS, PERFORMANCE, GREEN-GUARD ADDIX 700x55C
Stem	BIXS AS-4002, ANGLE ADJUSTABLE, 31.8mm CLAMP
Handlebar	BIXS HB-RB12L RIZER BAR, 700mm, 15°ANGLE, 15mm RISE, 31.8mm
Headset	FSA NO.57E, 1-1/8" UPPER AND 1.5" LOWER BEARING WITH 12.3mm TOP COVER
Seat post	BIXS, 350mm, 31.6mm
Saddle	ERGON ST10
Rear light	HERRMANS INTEGRATED REAR LIGHT ON CARRIER
Luggage carrier	MASSLOAD BIXS CUSTOM WITH INTEGRATED REAR LIGHT
Mudguards	BIXS ALLOY FENDER, 62mm WIDE, 700C
Weight	27.5 KG

Geometry

Size	A	B	C	D	E	F	G	H	I	J	K	L
S	440	590	180	480	73°	69°	1137	90	684	381	300	170
M	480	595	180	480	73°	69°	1144	90	684	387	300	170
L	520	600	180	480	73°	69°	1150	100	684	395	300	170

A Frame size
B Top tube horizontal (mm)
C Head tube (mm)
D Chainstay length (mm)
E Seat tube angle
F Head tube angle
G Wheel base (mm)
H Stem (mm)
I Stack (mm)
J Reach (mm)
K Bottom bracket height (mm)
L Crank length (mm)
