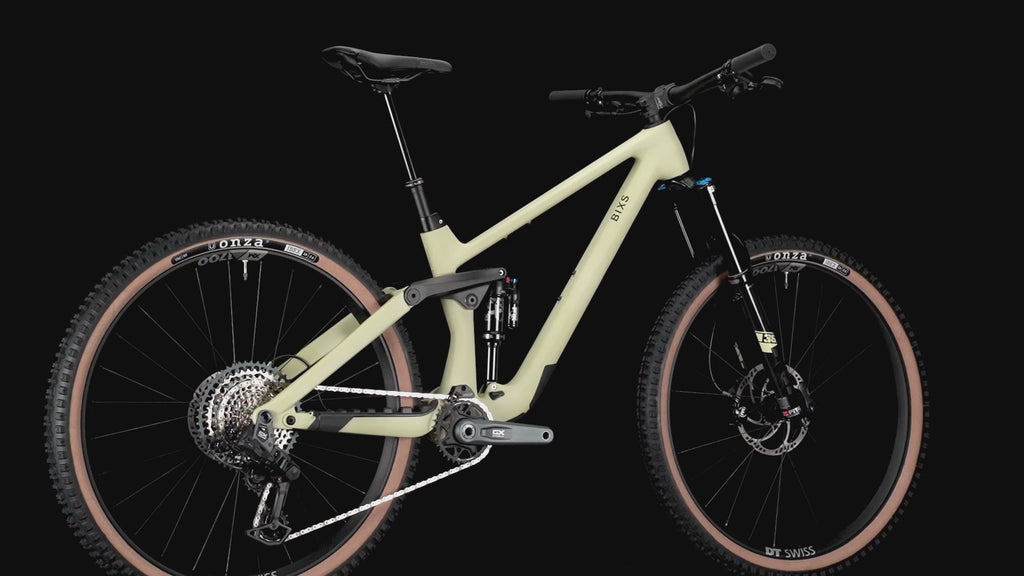

Peak 140

Secluded peaks and secret trails are the subject of many epic mountain bike stories. The new PEAK is based on the new LANE and was designed as a lighter package precisely for these missions. With its lightweight design, it lets you reach new heights and master alpine challenges with fun. The PEAK completely redefines free touring. Forget the bike park - your new horizon is much broader!

CHF 6,990.00

Unit price: per

Silver Matt

Which size fits me?

Frame sizes
149 – 163 cm: S
159 – 178 cm cm: M
174 - 188 cm: L
185 - 200 cm: XL

Where to test and buy?

Peak

Enter new areas.

Learn more about the Peak +

Specifications Peak 140

Frame	TRAIL GEOMETRY, FULL CARBON FRAME, 140mm TRAVEL, DROPOUT 148x12mm BOOST, 29"
Fork	FOX 36 FLOAT FACTORY, KASHIMA, 15x110mm AXLE, TAPERED, FIT4, TRAVEL: 150mm, 3-POS. LEVER
Shock	FOX FLOAT X PERFORMANCE ELITE, 2 POSITION LEVER 230x57.5, HARDWARE: 30/20mmx8mm
Rear derailleur	SRAM GX EAGLE AXS, 12-SPEED
Shift lever	SRAM EC AXS CONTROLLER RIGHT HAND ROCKER, 2 BUTTON, 12-SPEED
Crankset	SRAM GX EAGLE BOOST, DUB, S: 30, OTHERS 32 TEETH
Bottom bracket	SRAM BB DUB BSA 73 MTB
Cassette	SRAM XG-1295 EAGLE, 10-52 TEETH, 12-SPEED BLACK
Chain	SRAM CN-GX EAGLE 12-SPEED
Brakes	MAGURA MT5, 4-PISTON HYDRAULIC DISC BRAKE, ROTORS F:203mm, R:180mm
Bottom bracket	MAGURA MT5, 1-FINGER HC ALUMINIUM LEVER BLADE
Rims	DT SWISS WHEELSET SPLINE M-1900 TLR, 28 HOLES, INNER WIDTH 30mm, 29"
Front hub	DT SWISS WHEELSET SPLINE M-1900, 28 HOLES, 15x110mm THRU AXLE
Rear hub	DT SWISS WHEELSET SPLINE M-1900, 28 HOLES, 12x148mm BOOST, THRU AXLE
Front tire	ONZA IBEX, KEVLAR FOLDABLE, TUBELESS READY, 29x2.4"
Rear tire	ONZA IBEX, KEVLAR FOLDABLE, TUBELESS READY, 29x2.4"
Stem	RACE FACE AEFFECT R, 0°ANGLE, 35mm CLAMP
Handlebar	RACE FACE TURBINE R, 780mm, 20mm RISE, 8° BACKSWEEP, 35mm
Headset	ACROS CUSTOMIZED FOR INTEGRATED CABLE ROUTING, 1.5" BLOCK LOCK
Seat post	KIND SHOCK LEV INTEGRA, S: 100mm, M: 125mm, L: 150mm, XL: 175mm TRAVEL, SHIMANO REMOTE, 31.6mm
Saddle	ERGON SM10 SPORT MAN
Weight	13.9 KG

Geometry

	SIZE	S	M	L	XL
A	Reach	430	460	490	520
B	Stack	612	620	634	651
C	Top Tube	552	585	620	659
D	Seat Tube	370	400	430	490
E	Head Tube	90	100	115	135
F	Fork Length	561	561	561	561
G	Fork Offset	44	44	44	44
H	Chainstay	440	440	440	450
I	Seat Angle	78.7	78.5	78.3	77.9
J	Head Tube Angle	65.4	65.4	65.4	65.4
K	BB Drop	37	37	37	37
L	BB Height	338	338	338	338
M	Wheelbase	1180	1214	1250	1299
	Stem Length	40	50	50	50
	Crank Length	165	170	170	170
