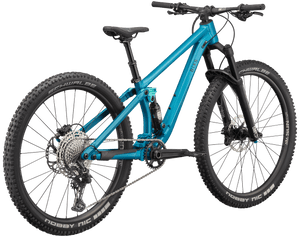

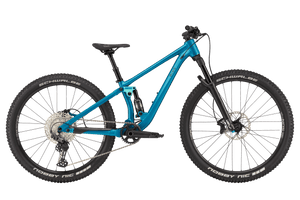

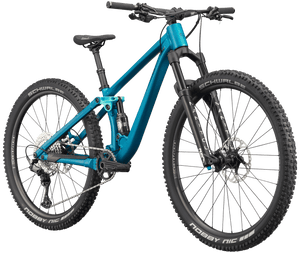

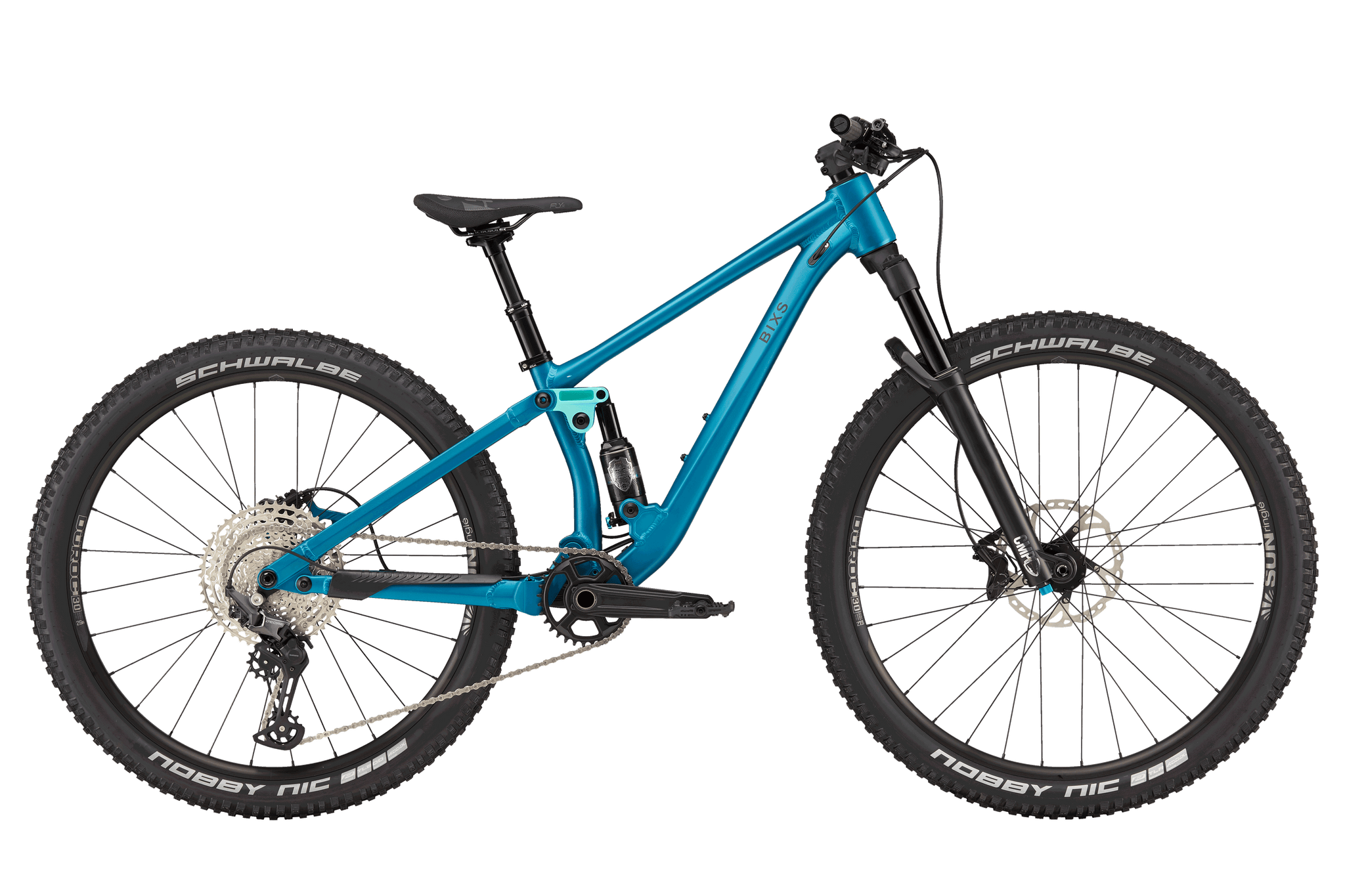

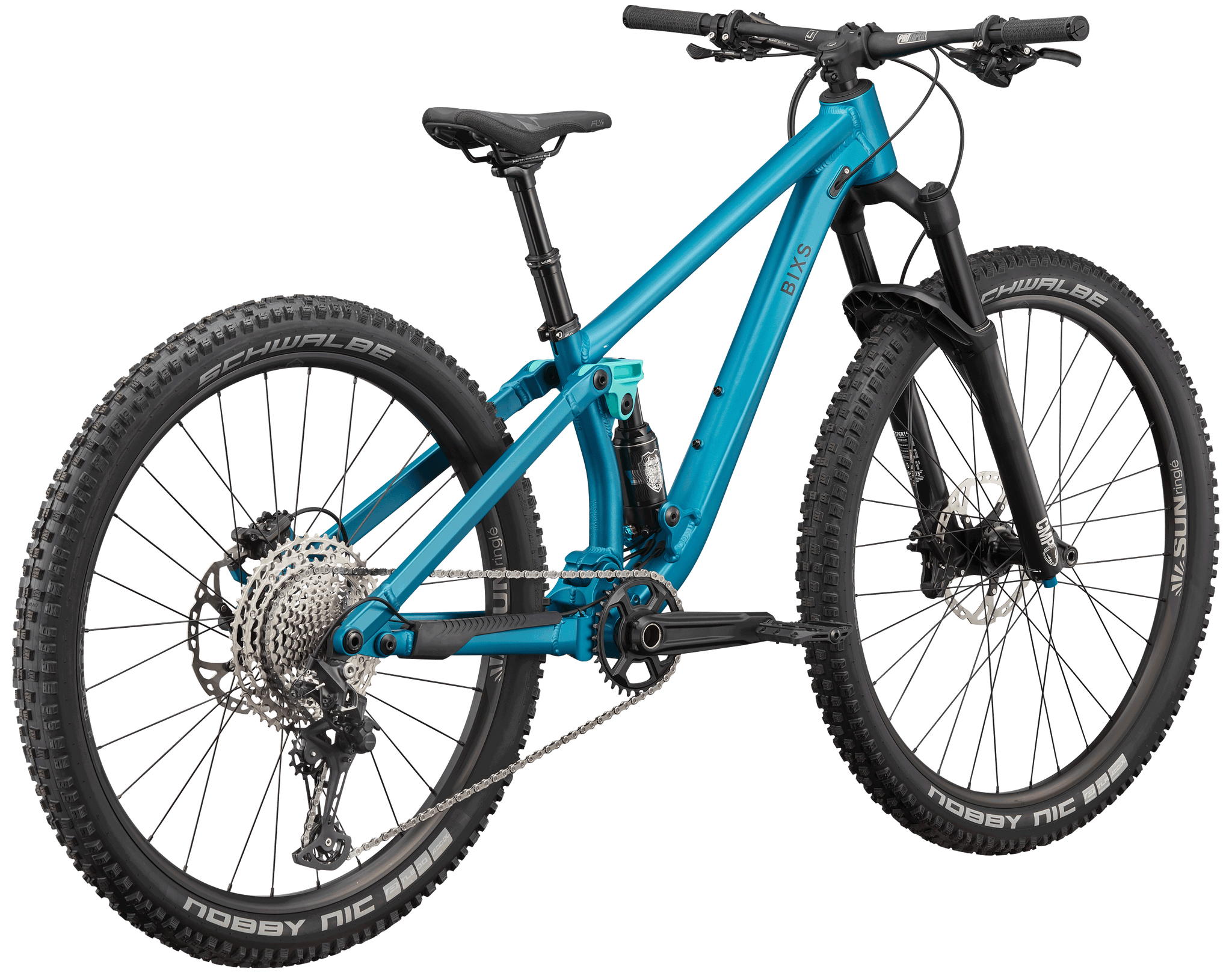

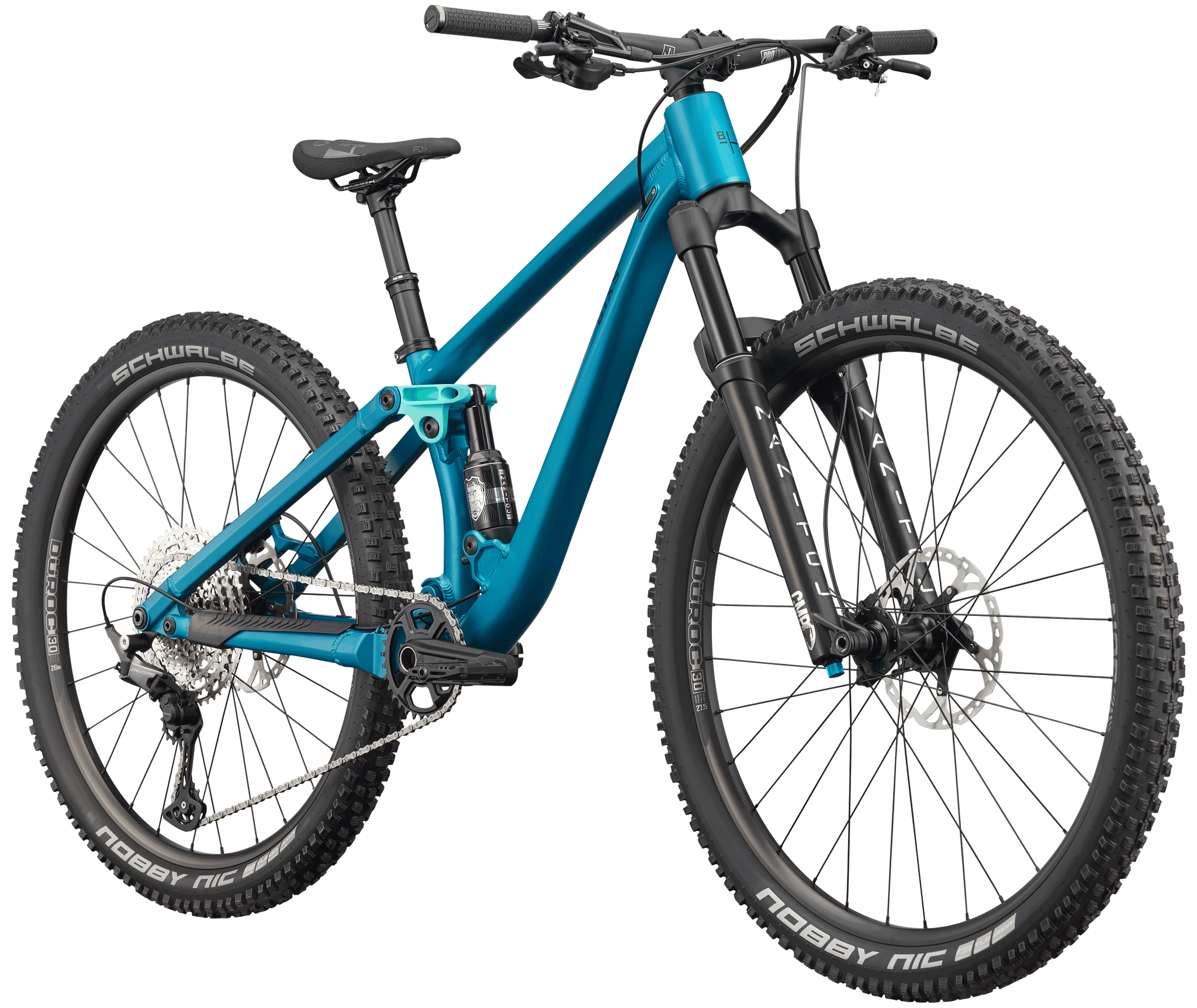

Spécifications Traction 120

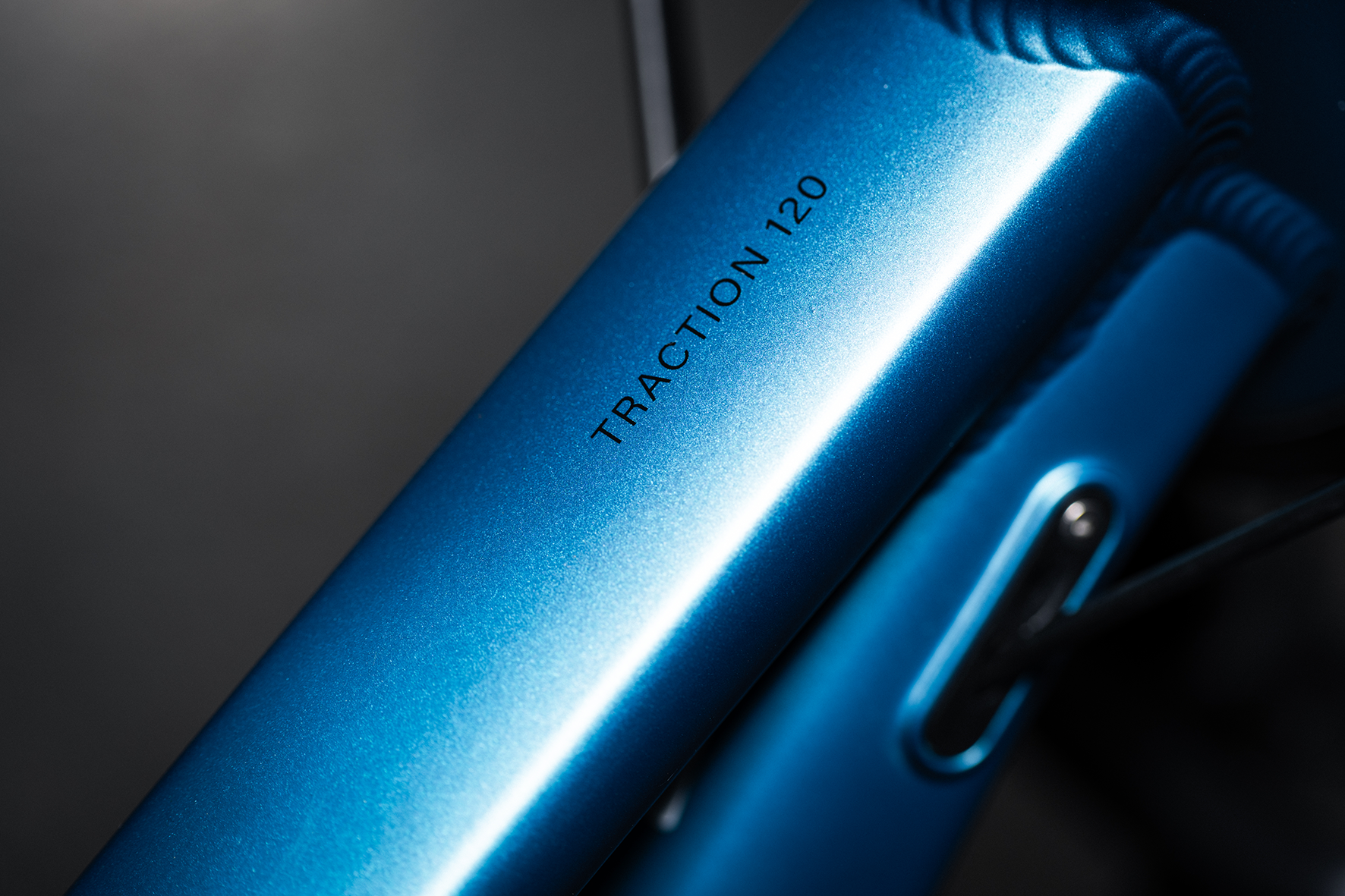

Rahmen TRACTION PREMIUM ALLOY FULLSUSPENSION, 120mm TRAVEL, 12x148mm BOOST, POST MOUNT DISC
Gabel MANITOU MATTOC COMP, 110mm TRAVEL, 15x110mm, 44mm OFFSET

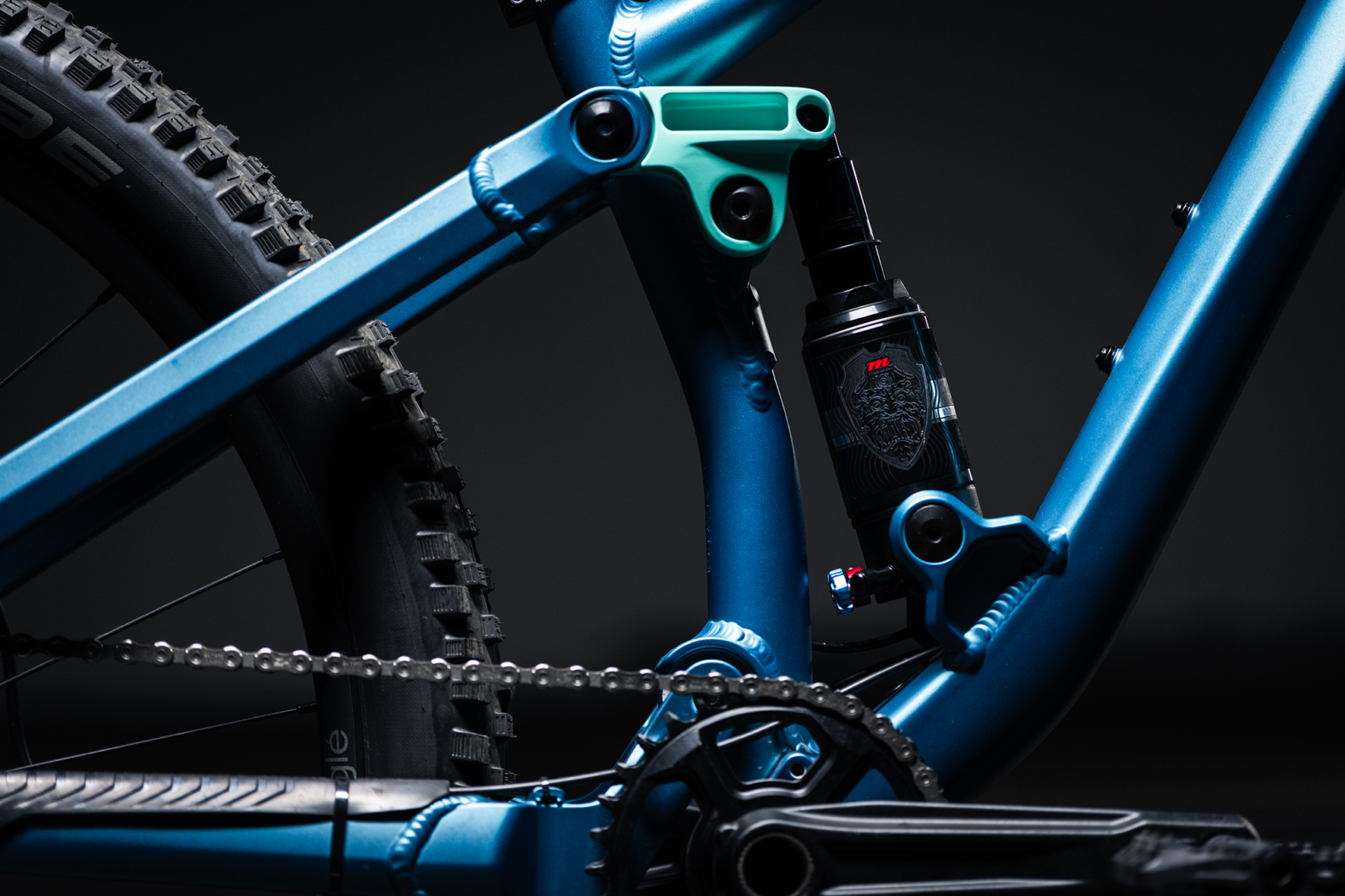

Dämpfer MANITOU MARA, 2 POSITION LEVER, TRUNNION MOUNT, 165x45mm, HARDWARE: 22x8mm
Schaltwerk SHIMANO DEORE RD-M6100-SGS, 12-SPEED
Schalthebel SHIMANO DEORE SL-M6100-R
Kurbelgarnitur PROWHEEL DMJ, CL52, 32T
Pedal SDG SLATE 90
Innenlager SHIMANO SM-BB52 BSA 73mm
Kassette SHIMANO DEORE CS-M6100-12, 10-51T
Kette SHIMANO DEORE CN-M6100
Bremsen SHIMANO BL-MT501, BR-MT520 4-PISTON
Bremsscheiben SHIMANO SM-RT76, 6 BOLT, 180/180MM

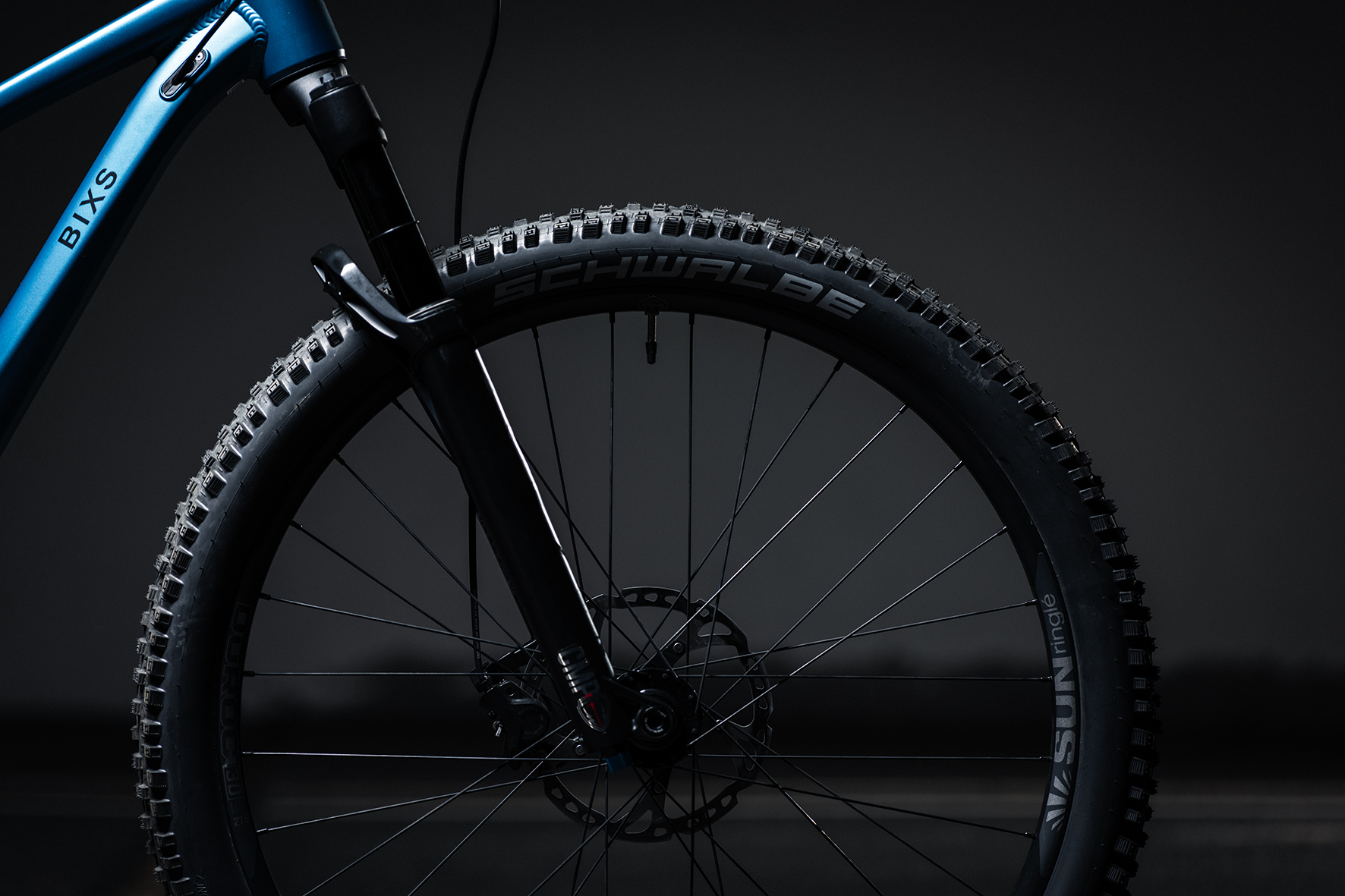

Vorderreifen SCHWALBE NOBBY NIC PERFORMANCE, TWINSKIN, RACEGUARD, ADDIX, 27.5x2.35", TUBELESS READY
Hinterreifen SCHWALBE NOBBY NIC PERFORMANCE DD, RACEGUARD, ADDIX, 26x2.35", TUBELESS READY
Vorbau BIXS STEM, 0°, 31.8mm CLAMP
Lenker PROTAPER JUNIT, 25mm RISE, 680mm
Sattelstütze KIND SHOCK RAGE-I, ø31.6mm, 75mm
Sattel SDG FLY JR
Gewicht 14.3 KG

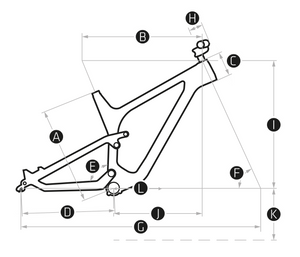

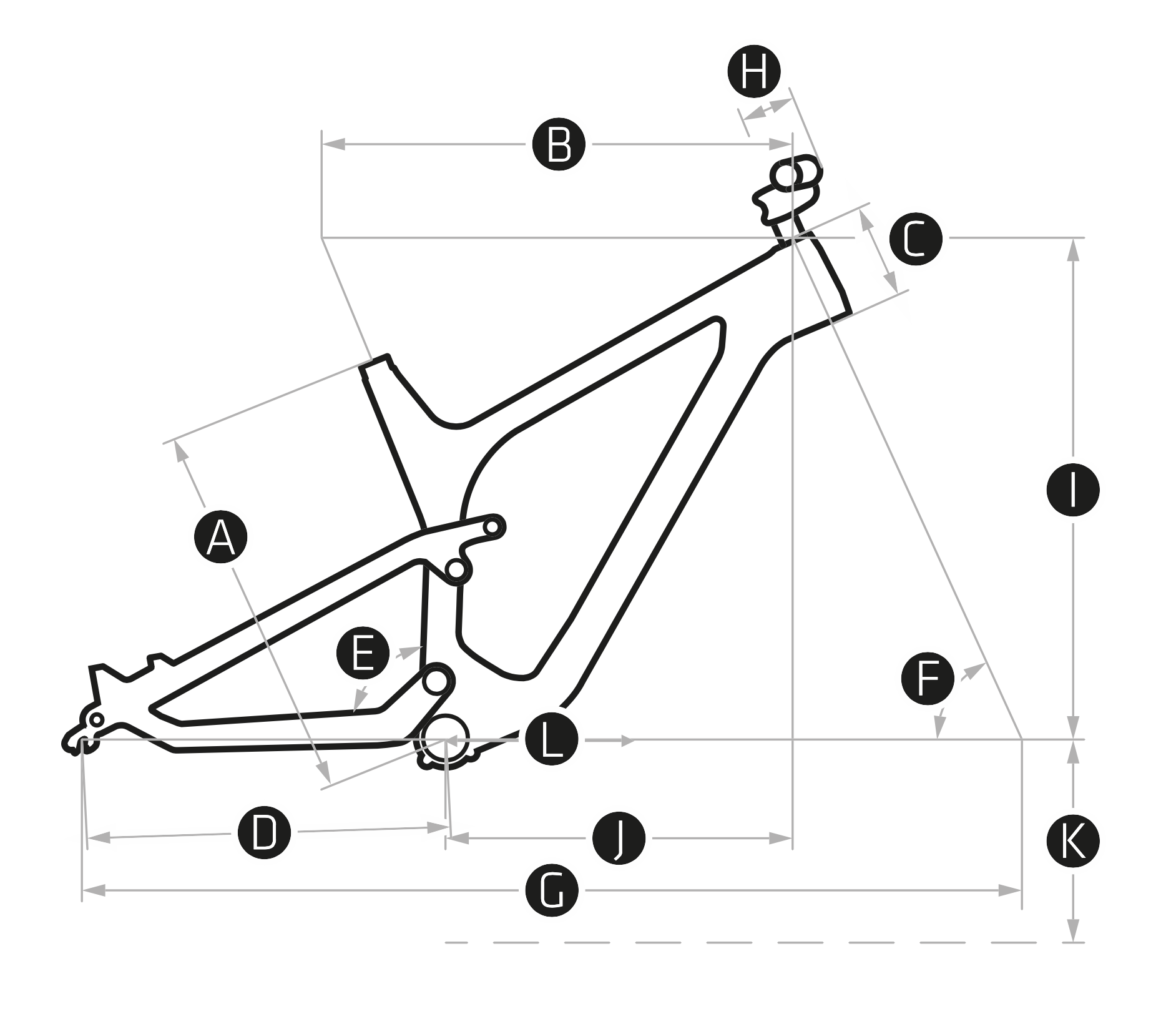

Géométrie

SIZE Onesize
A Rahmengrösse mm 335
B Oberrohr horizontal mm 538.3
C Steuerrohr mm 100
D Kettenstreben mm 435
E Sitzwinkel Grad 73.3°
F Radstand mm 66.2°
G Radstand mm 1103
H Vorbau mm 40
I Stack mm 567
J Reach mm 368.5
K Tretlagerhöhe mm 315.5
L Kurbellänge mm 160

A Taille du cadre mm
B Tube supérieur horizontal mm
C Tube de direction mm
D Base arrière mm
E Angle tube de selle
F Angle tube de direction
G Base mm
H Potence mm
I Stack mm
J Reach mm
K Hauteur de pédalier mm
L Longueur de manivelle mm
