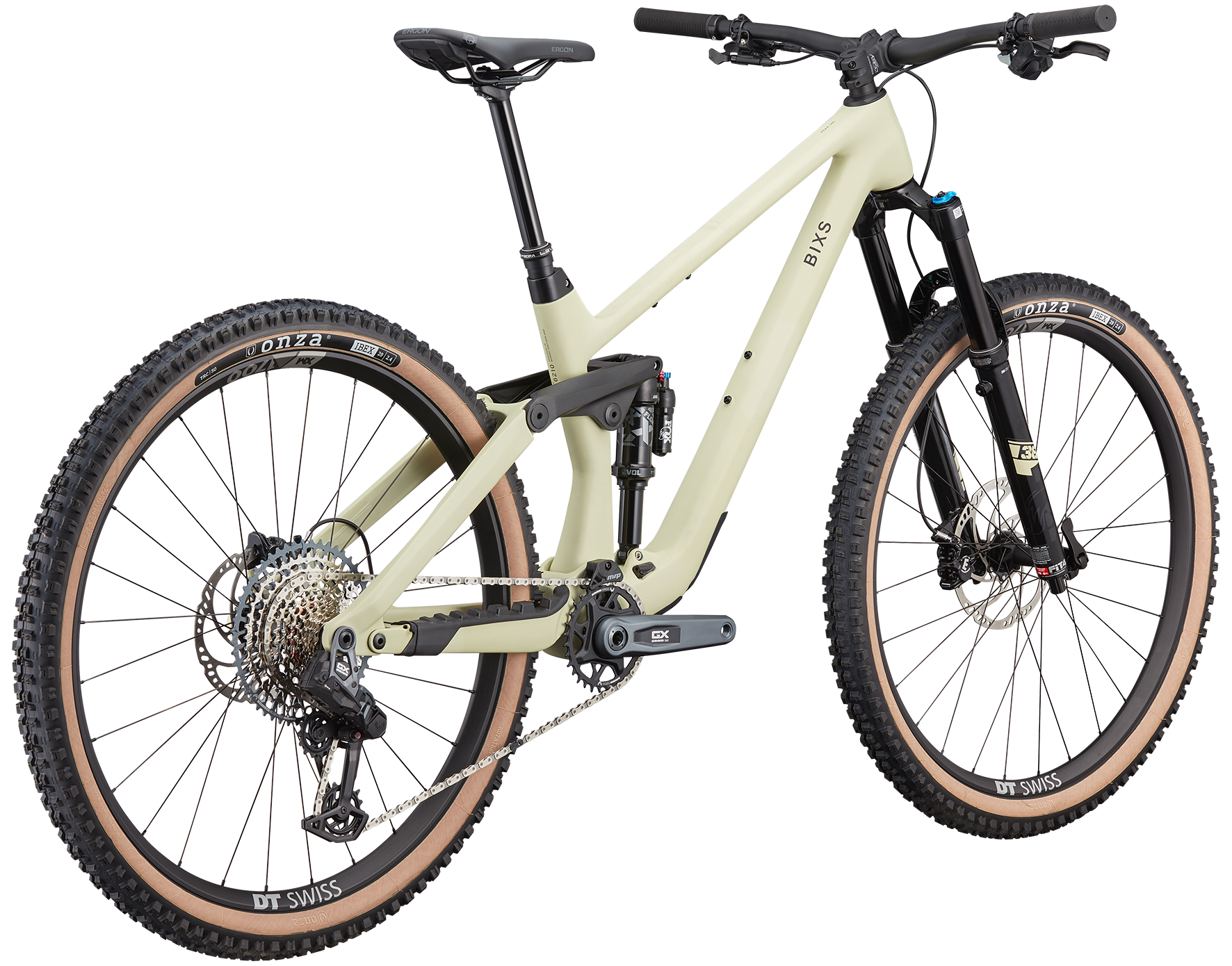

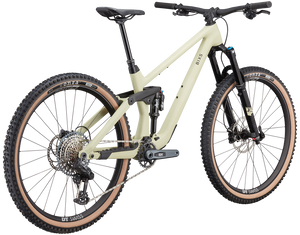

Spécifications Peak 140

Cadre TRAIL GEOMETRY, FULL CARBON FRAME, 140mm TRAVEL, DROPOUT 148x12mm BOOST, 29"
Fourche FOX 36 FLOAT PERFORMANCE ELITE
Amortisseur FOX FLOAT X PERFORMANCE ELITE, 2 POSITION LEVER 230x57.5, HARDWARE: 30/20mmx8mm
Dérailleur SRAM GX EAGLE AXS, 12-SPEED
Levier de vitesse SRAM EC AXS CONTROLLER RIGHT HAND ROCKER, 2 BUTTON, 12-SPEED
Pédalier SRAM GX EAGLE BOOST, DUB, S: 30 THEETH, OTHERS 32 TEETH
Roulement de pédalier SRAM BB DUB BSA 73 MTB
Cassette SRAM XG-1295 EAGLE, 10-52 TEETH, 12-SPEED BLACK
Chaîne SRAM CN-GX EAGLE
Freins MAGURA MT5, 4-PISTON HYDRAULIC DISC BRAKE, ROTORS F:203mm, R:180mm
Levier de freins MAGURA MT5, 1-FINGER HC ALUMINIUM LEVER BLADE
Jantes DT SWISS WHEELSET SPLINE M-1900 TLR, 28 HOLES, INNER WIDTH 30mm, 29"
Moyeu avant DT SWISS WHEELSET SPLINE M-1900, 28 HOLES, 15x110mm THRU AXLE
Moyeu arrière DT SWISS WHEELSET SPLINE M-1900, 28 HOLES, 12x148mm BOOST, THRU AXLE
Pneu avant ONZA IBEX, KEVLAR FOLDABLE, TUBELESS READY, 29x2.4"
Pneu arrière ONZA IBEX, KEVLAR FOLDABLE, TUBELESS READY, 29x2.4"
Potence RACE FACE AEFFECT R, 0°ANGLE, 35mm CLAMP
Guidon RACE FACE TURBINE R, 780mm, 20mm RISE, 8° BACKSWEEP, 35mm
Jeu de direction ACROS CUSTOMIZED FOR INTEGRATED CABLE ROUTING, 1.5" BLOCK LOCK
Tige de selle KIND SHOCK LEV INTEGRA, S: 100mm, M: 125mm, L: 150mm, XL: 175mm TRAVEL, SHIMANO REMOTE, 31.6mm
Selle ERGON SM10 SPORT MAN
Poids 13.9 KG

Géométrie

TailleABCDEFGHIJKL
S3705669044077.465.4117940612430336165
M40059810044077.465.4121340620459336170
L43063211544077.465.4125040634489336170
XL49066613545077.465.4128850652520336170

A Taille de cadre mm
B Long. tube horizontal mm
C Long. tube de dir. mm
D Long. bases arrières mm
E Angle tube de selle
F Angle tube de direction
G Base mm
H Potence mm
I Stack mm
J Reach mm
K Hauteur de pedalier mm
L Longueur des manivelles mm
