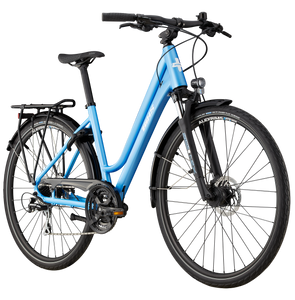

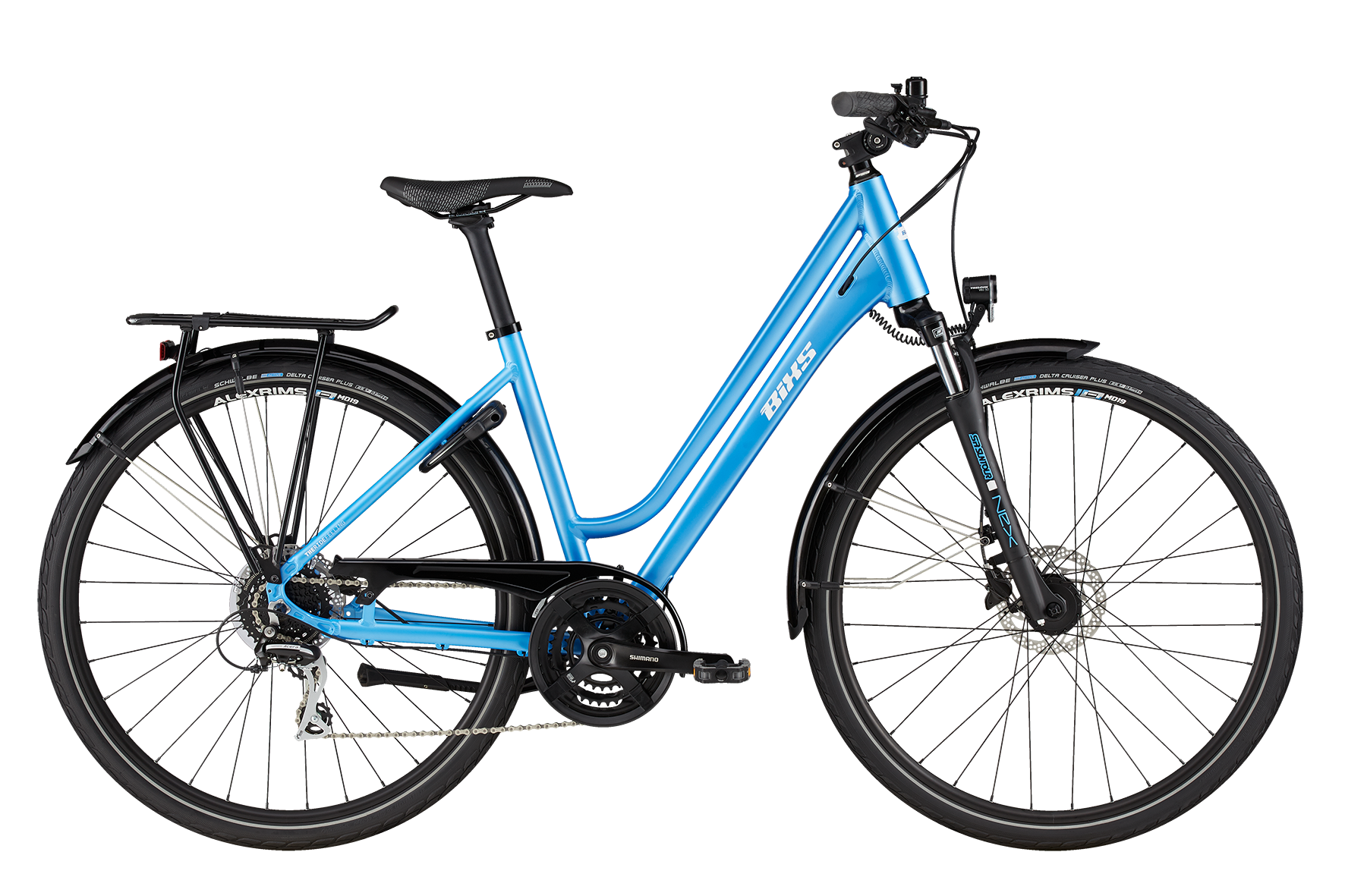

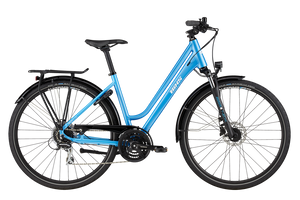

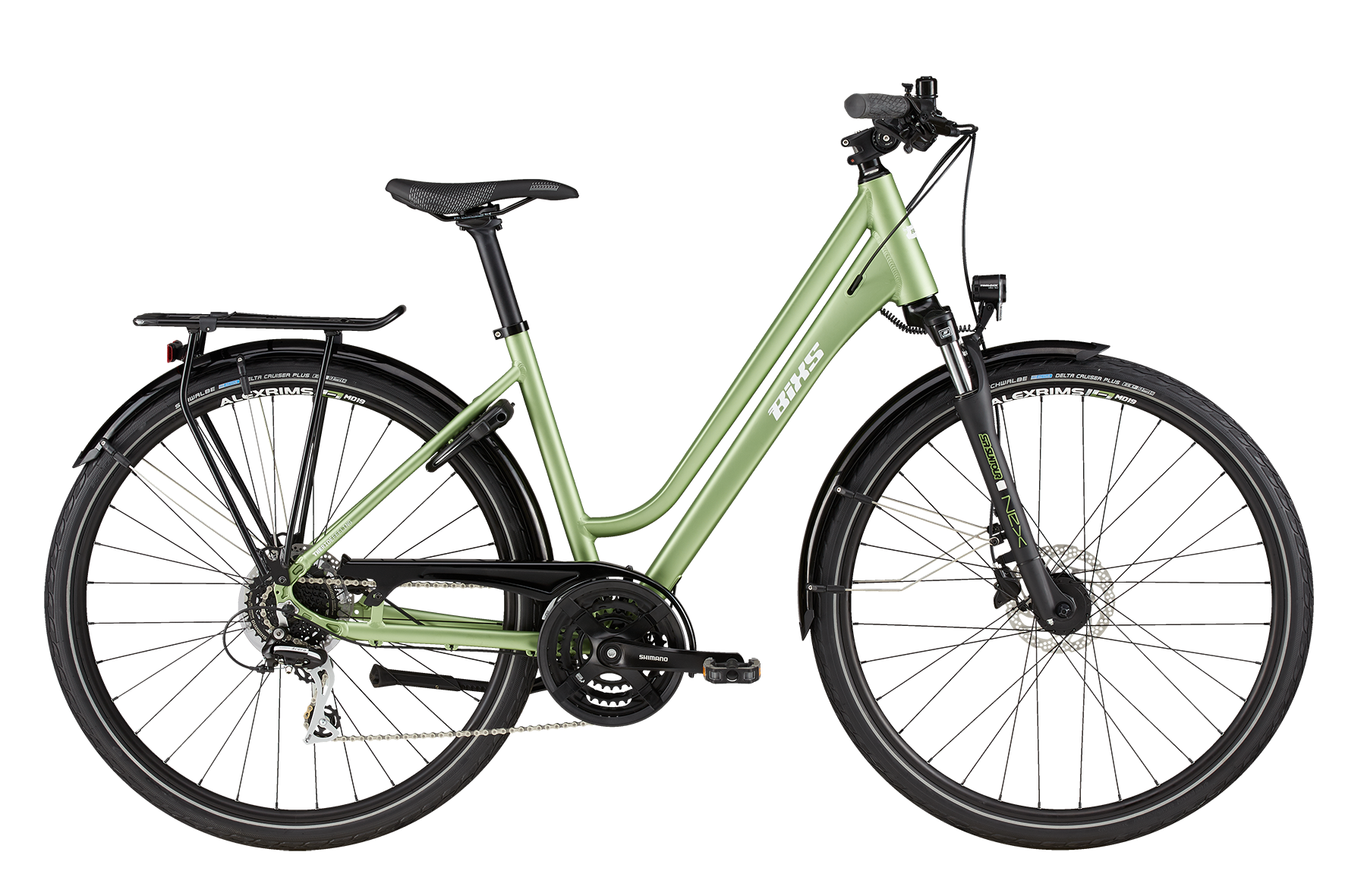

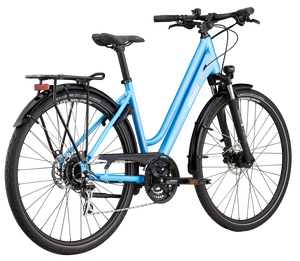

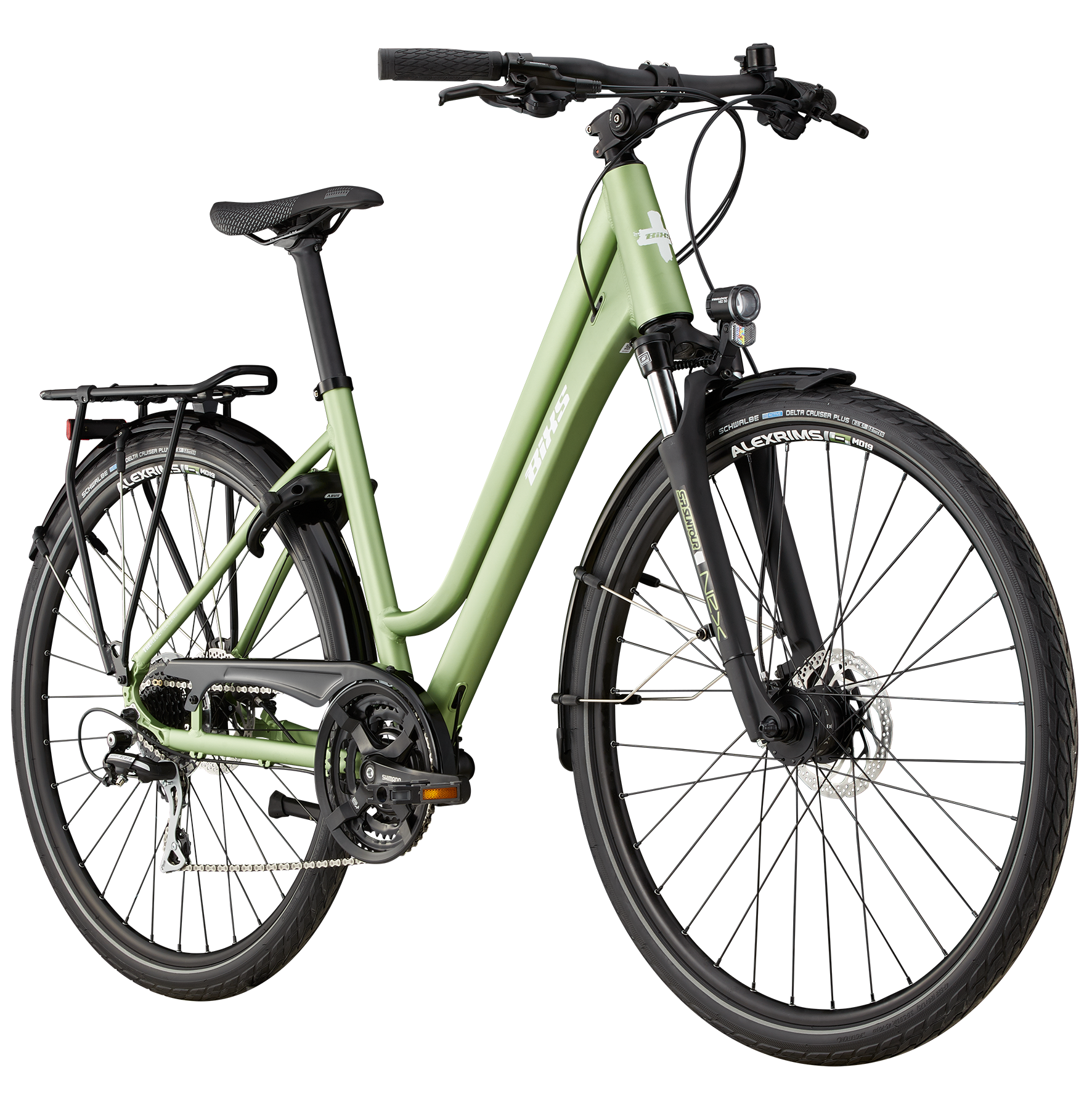

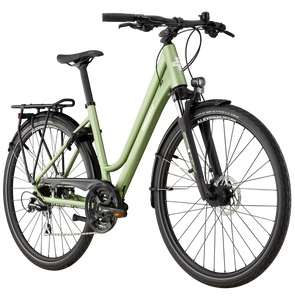

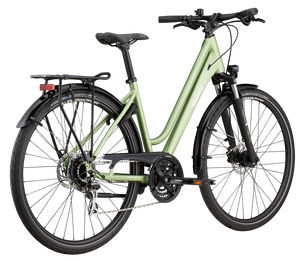

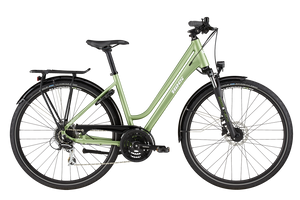

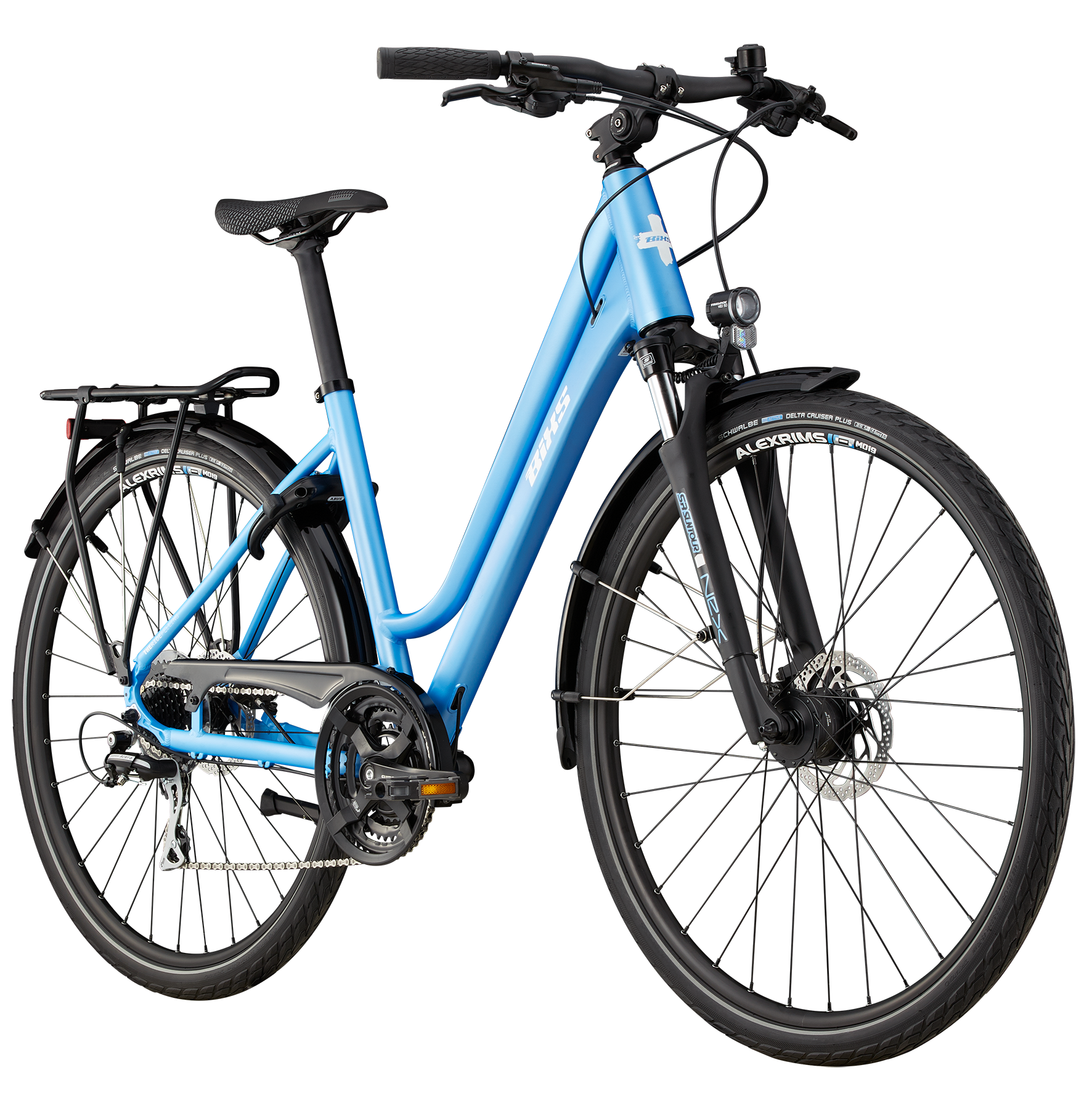

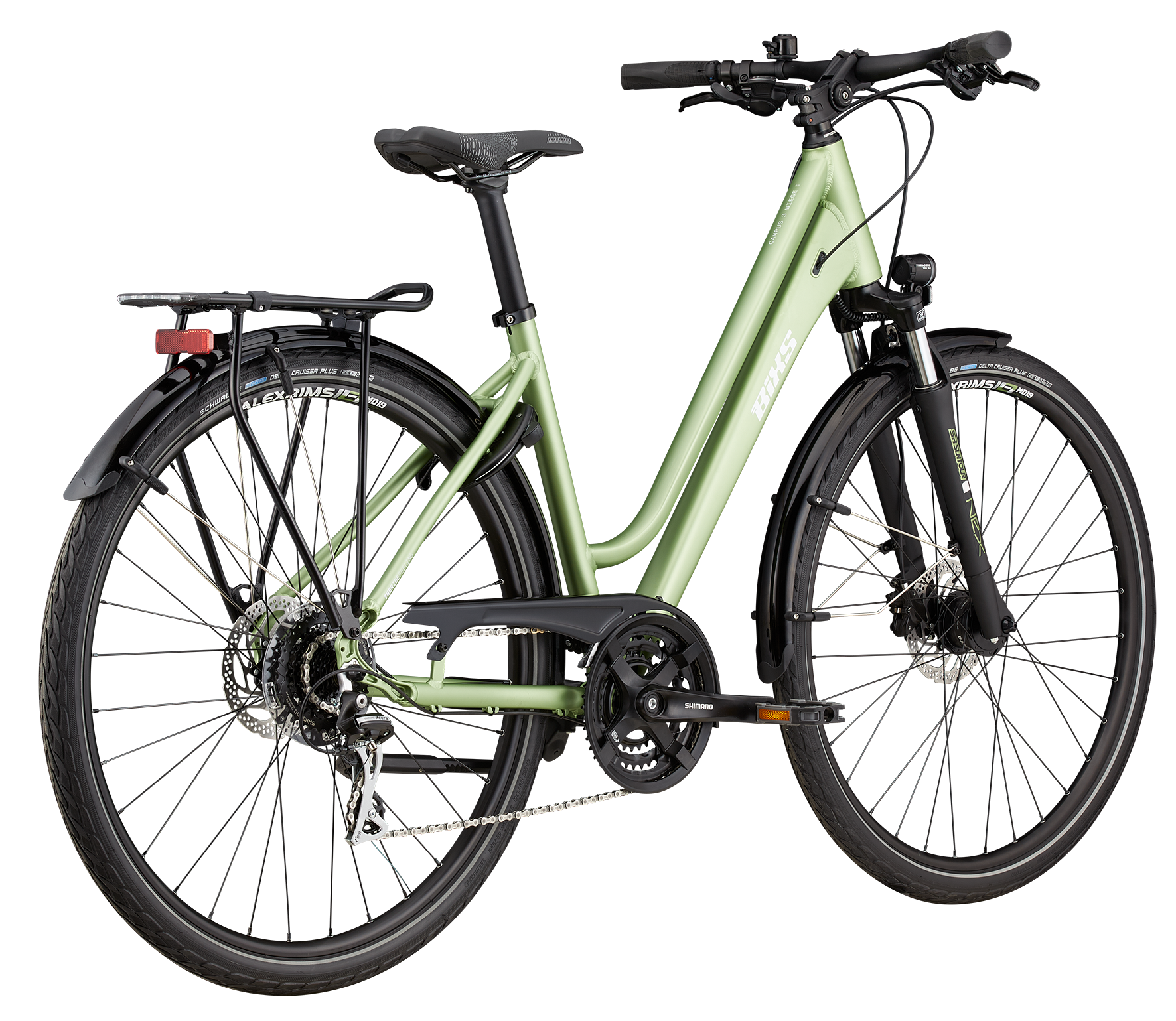

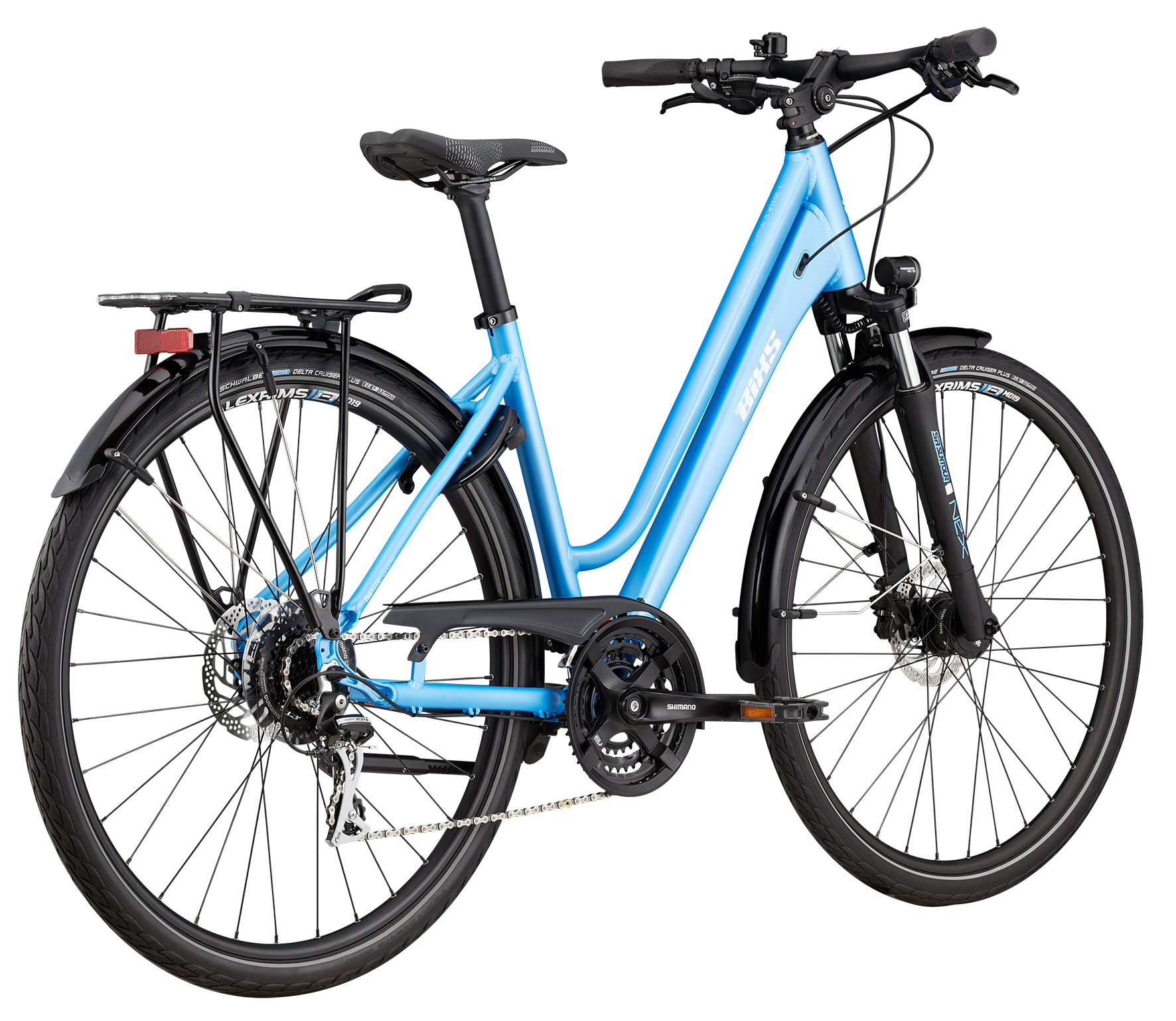

Spécifications Campus 3 Wiege

Cadre TOURING CONCEPT, ALLOY 6061, WIEGE 700C
Fourche SUNTOUR SF16-NEX DS, TAPERED, COIL SPRING , 63MM
Dérailleur arr. SHIMANO ACERA RD-M3020 SGS SHADOW DESIGN
Dérailleur av. SHIMANO TOURNEY FD-TY710-TS3, TOP SWING, 34,9mm CLAMP
Levier de vitesse SHIMANO SL-M315, WITH OPTICAL GEAR DISPLAY
Pédalier SHIMANO FC-TY501, 48-38-28T
Pédale WELLGO LU-C097
Roulement de pédalier SHIMANO BB-UN300-K, 68mm x 122.5mm
Cassette SHIMANO CS-HG31, 11-34 TEETH, 8-SPEED
Chaîne SHIMANO CN-HG71 8-SPEED
Freins SHIMANO BR-MT200, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:160mm, R:160mm ROTORS
Levier de freins SHIMANO BL-MT201
Jantes ALEXRIMS MD-19, 32 HOLES, INNER WIDTH 19mm, 700C
Moyeu avant SHIMANO DH-3D37 HUB DYNAMO, 6V, 3W, 32 HOLES
Moyeu arrière SHIMANO FH-QC400-HM, 32 HOLES
Pneu avant SCHWALBE DELTA CRUISER PLUS, PUNCTURE GUARD, 700x47C
Pneu arrière SCHWALBE DELTA CRUISER PLUS, PUNCTURE GUARD, 700x47C
Potence BIXS AS-4002, ANGLE ADJUSTABLE, 31.8mm CLAMP
Guidon BIXS HB-TR2 TREKKING BAR, 640mm, 25° ANGLE, 31.8mm
Jeu de direction FSA NO.57E, 1-1/8" UPPER AND 1.5" LOWER BEARING WITH 12.3mm TOP COVER
Tige de selle BIXS SP-3D2, 350mm, 31.6mm
Selle BIXS VL-3534
Phare TRELOCK LS-383 LED, 50 LUX, STANDLIGHT AUTOMATIC
Feu arrière INTEGRATED IN CARRIER, STANDLIGHT AUTOMATIC
Dynamo SHIMANO DH-3D37 HUB DYNAMO, 6V, 3.0W, 32 HOLES
Porte-bagages RACKTIME BIXS CUSTOM WITH INTEGRATED REAR LIGHT
Garde-boue YUNG FANG EX-CP55-AB, 55mm WIDE, 700C
Poids 16.9 KG

Géométrie

TailleABCDEFGHIJKL
S44055518046073°70°106890669350300170
M48057018046073°70°108390669365300170
L52059018046073°70°1103100669385300170

A Taille de cadre mm
B Long. tube horizontal mm
C Long. tube de dir. mm
D Long. bases arrières mm
E Angle tube de selle
F Angle tube de direction
G Base mm
H Potence mm
I Stack mm
J Reach mm
K Hauteur de pedalier mm
L Longueur des manivelles mm
