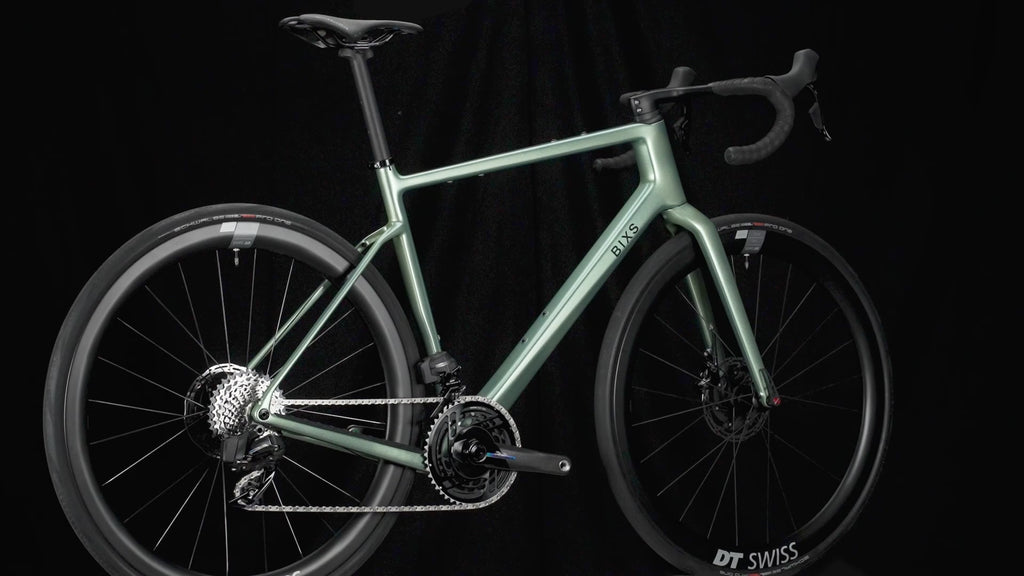

Spécification Gran Turismo AR 1
| Cadre | GRAN TURISMO CARBON ROAD, 12X142MM, FLAT MOUNT DISC |
| Fourche | FULL CARBON ROAD FORK, 12x100mm |
| Dérailleur arr. | SRAM FORCE AXS, 12-SPEED |
| Dérailleur av. | SRAM FORCE AXS |
| Levier de vitesse | SRAM FORCE AXS |
| Pédalier | SRAM FORCE CARBON, CL45, DUB, 46/33T |
| Cassette | SRAM FORCE XG-1270, 10-36T |
| Chaîne | SRAM FORCE |
| Freins | SRAM FORCE AXS CARBON LEVER |
| Freins à disque | SRAM CENTERLINE XR, CENTER LOCK, 160/160MM |
| Moyeu | DT SWISS ERC 1400 DICUT, CARBON, 22MM INNER WIDTH, 45MM DEPTH, SRAM XDR FREEHUB |
| Pneu avant | SCHWALBE PRO ONE EVO, TLE, SUPER RACE, ADDIX RACE, 700X32C, TUBELESS READY |
| Pneu arrière | SCHWALBE PRO ONE EVO, TLE, SUPER RACE, ADDIX RACE, 700X32C, TUBELESS READY |
| Guidon | BIXS AERO ONE-PIECE CARBON COCKPIT, 6° FLARE, S: 400X90MM, M: 400X100MM, L: 420X100MM, XL: 420X110MM |
| Tige de selle | BIXS CARBON SEATPOST, Ø27.2MM, 350MM, 0MM OFFSET |
| Selle | SELLE ITALIA SLR BOOST, MANGANESE RAIL |
| Tailles | S, M, L , XL |
| Numéro d'article | 101-506-5035 |
| Couleur | METALLIC GREEN |
| Poids | 7.7 KG |
| Prix (CHF) | 6'490.– |
Géométrie
| Size | S | M | L | XL | |
| A | Reach | 365 | 380 | 395 | 405 |
| B | Stack | 540 | 560 | 580 | 610 |
| C | Top Tube | 525 | 546 | 567 | 586 |
| D | Seat Tube | 460 | 490 | 520 | 550 |
| E | Head Tube | 114 | 135 | 156 | 188 |
| F | Fork Length | 394 | 394 | 394 | 394 |
| G | Fork Offset | 50 | 50 | 50 | 50 |
| H | Chainstay | 420 | 420 | 420 | 420 |
| I | Seat Angle | 73.5 | 73.5 | 73.5 | 73.5 |
| J | Head Tube Angle | 71 | 71 | 71 | 71 |
| K | BB Drop | 75 | 75 | 75 | 75 |
| L | BB Height | 270 | 270 | 270 | 270 |
| M | Wheelbase | 991 | 1013 | 1035 | 1055 |
| Stem Length | 90 | 100 | 100 | 110 | |
| Crank Length | 170 | 172.5 | 172.5 | 175 |
