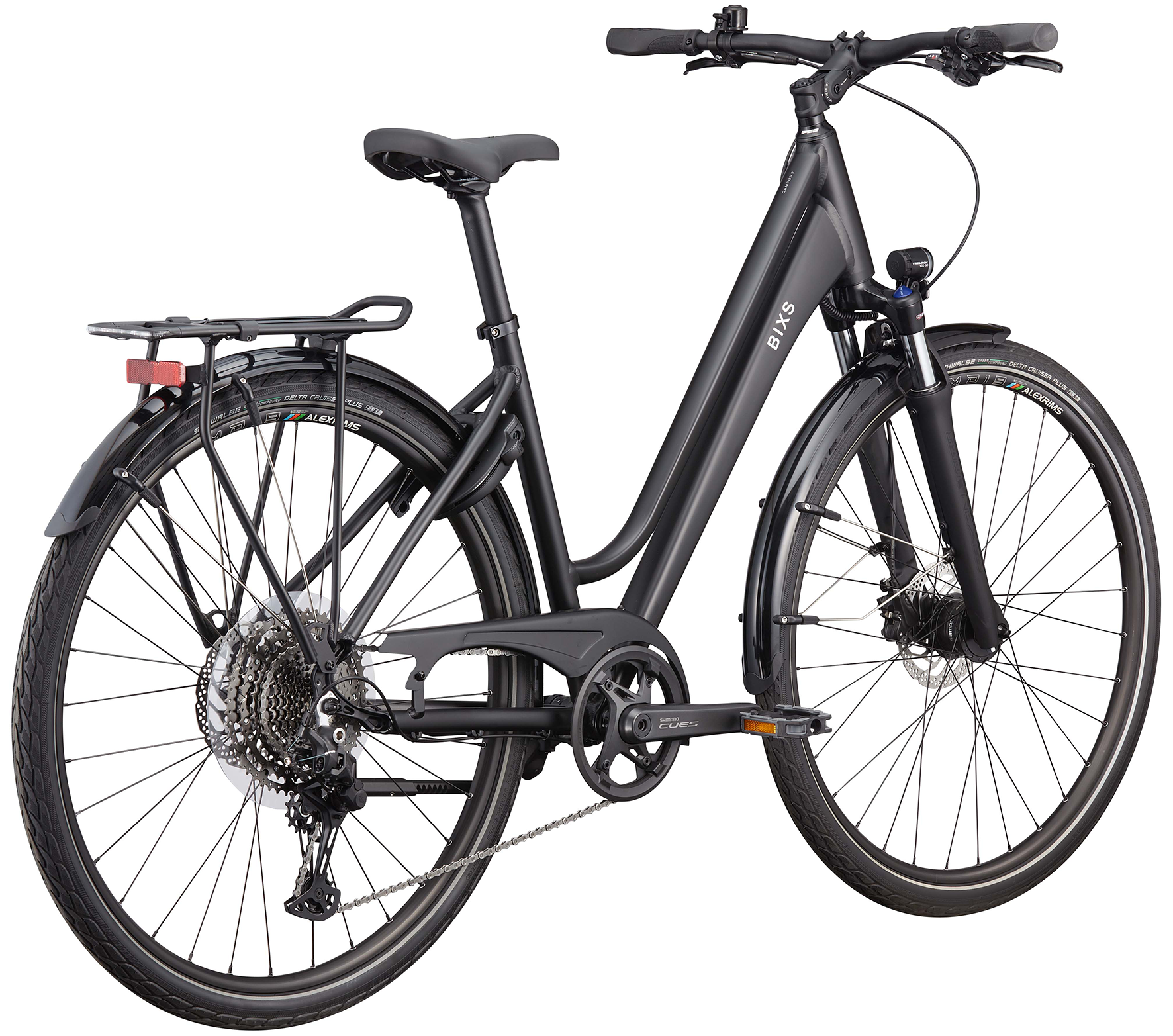

Spezifikationen Campus 2 Wiege

Rahmen TOURING CONCEPT, ALLOY 6061, WIEGE 700C
Gabel SUNTOUR SF20-NEX HLO DS, TAPERED, HYDRAULIC LOCKOUT, 63MM
Schaltwerk SHIMANO ALIVIO RD-T4000 SGS, TOP NORMAL, 9-SPEED
Umwerfer SHIMANO ACERA FD-M3000, TOP-SWING, 34.9mm CLAMP
Schalthebel SHIMANO ALIVIO SL-M3100, WITH OPTICAL GEAR DISPLAY
Kurbelgarnitur SHIMANO ALIVIO FC-T4010, OCATLINK, 48-36-26 TEETH
Pedal WELLGO LU-C097
Innenlager SHIMANO BB-ES300, 68mm x 126mm
Kassette SHIMANO CS-HG400-9, 11-34 TEETH, 9-SPEED
Kette SHIMANO CN-HG53 9-SPEED
Bremsen SHIMANO BR-MT200, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:160mm, R:160mm ROTORS
Bremshebel SHIMANO BL-MT201
Felgen ALEXRIMS MD-19, 32 HOLES, INNER WIDTH 19mm, 700C
Nabe vorne SHIMANO DH-3D37 HUB DYNAMO, 6V, 3W, 32 HOLES
Nabe hinten SHIMANO FH-QC400-HM, 32 HOLES
Vorderreifen SCHWALBE DELTA CRUISER PLUS, PUNCTURE GUARD, 700x47C
Hinterreifen SCHWALBE DELTA CRUISER PLUS, PUNCTURE GUARD, 700x47C
Vorbau BIXS AS-4002, ANGLE ADJUSTABLE, 31.8mm CLAMP
Lenker BIXS RIZER BAR, 680mm, 9°ANGLE, 15mm RISE, 31.8mm
Steuersatz FSA NO.57E, 1-1/8" UPPER AND 1.5" LOWER BEARING WITH 12.3mm TOP COVER
Sattelstütze BIXS SP-3D2, 350mm, 31.6mm
Sattel ERGON ST10 GEL
Scheinwerfer TRELOCK LS-383 LED, 50 LUX, STANDLIGHT AUTOMATIC
Rücklicht INTEGRATED IN CARRIER, STANDLIGHT AUTOMATIC
Dynamo SHIMANO DH-3D37 HUB DYNAMO, 6V, 3.0W, 32 HOLES
Gepäckträger RACKTIME BIXS CUSTOM WITH INTEGRATED REAR LIGHT
Schutzbleche YUNG FANG EX-CP55-AB, 55mm WIDE, 700C
Gewicht 16.5 KG

Geometrie

Grösse A B C D E F G H I J K L
S 440 555 180 460 73° 70° 1068 90 669 350 300 170
M 480 570 180 460 73° 70° 1083 90 669 365 300 170
L 520 590 180 460 73° 70° 1103 100 669 385 300 175

A Rahmengrösse
B Oberrohr horizontal mm
C Steuerrohr mm
D Kettenstreben mm
E Sitzwinkel Grad
F Steuerrohrwinkel Grad
G Radstand mm
H Vorbau mm
I Stack mm
J Reach mm
K Tretlagerhöhe mm
L Kurbellänge mm
