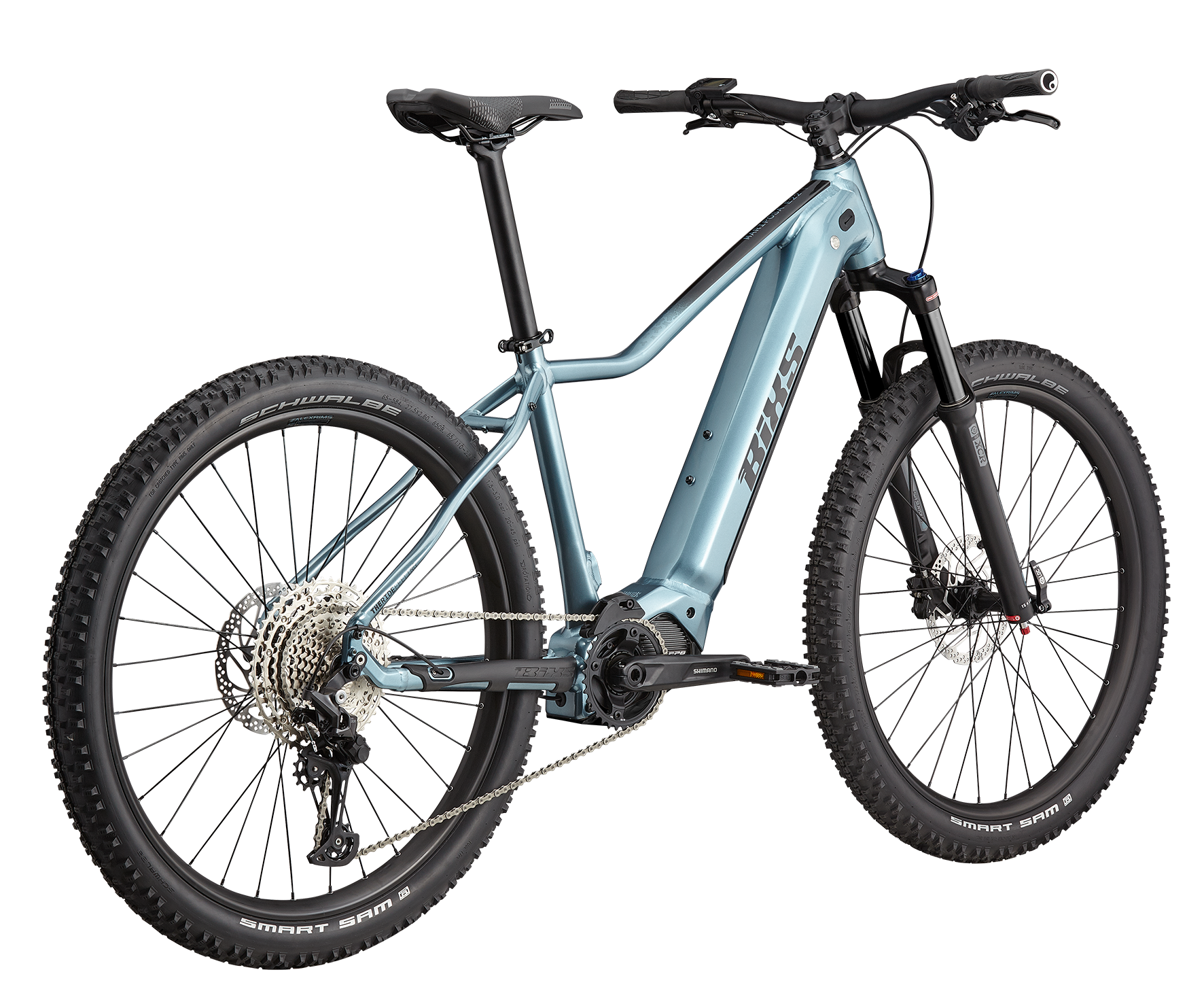

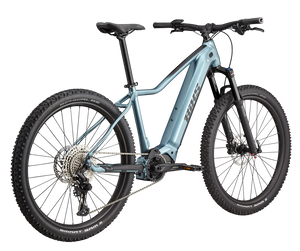

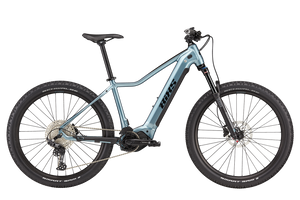

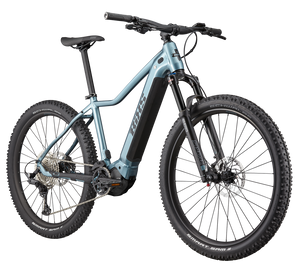

Spezifikationen Mariposa-E22

Rahmen E-WOMEN GEOMETRY, ALLOY 6061 HYDROFORMED D.B. TUBES, HARDTAIL, DROPOUT 148x12mm BOOST, 27.5"
Gabel SUNTOUR XCR34 AIR LO-R 27.5", BOOST, TAPERED, AIR SPRING, 120mm TRAVEL, REBOUND, LOCKOUT
Motor SHIMANO STEPS EP8, 250 WATT
Batterien DARFON, 36V, 500Wh
Display SHIMANO SC-E5003
Unterstützungsstufen ECO, TRAIL, BOOST
E-Bike Speed 25 km/h
Schaltwerk SHIMANO DEORE RD-M5100 SGS SHADOW PLUS DESIGN, 11-SPEED
Schalthebel SHIMANO DEORE SL-M5100, WITH OPTICAL GEAR DISPLAY
Kurbelgarnitur SHIMANO STEPS FC-EM600, 34 TEETH
Pedal VPE-857
Kassette SHIMANO CS-M5100, 11-51 THEETH, 11-SPEED
Kette SHIMANO CN-HG701-11
Bremsen SHIMANO BR-MT200, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:180mm, R:180mm ROTORS
Bremshebel SHIMANO BL-MT201
Nabe vorne SHIMANO HB-MT400-B, 32 HOLES, 15x110mm BOOST THRU AXLE
Nabe hinten SHIMANO FH-MT400-B, 32 HOLES, 12x148mm BOOST THRU AXLE
Vorderreifen SCHWALBE SMART SAM PERFORMANCE, ADDIX, 27.5x2.6"
Hinterreifen SCHWALBE SMART SAM PERFORMANCE, ADDIX, 27.5x2.6"
Vorbau BIXS 0°ANGLE, 35mm CLAMP
Lenker BIXS RIZER BAR, 760mm, 9° BACKSWEEP, 15mm RISE, 35mm
Steuersatz FSA NO.57E, 1-1/8" UPPER AND 1.5" LOWER BEARING WITH 12.3mm TOP COVER
Sattelstütze BIXS, S & M: 350mm, OTHERS: 400mm, 31.6mm
Sattel BIXS VL-3534
Gewicht 22.3 KG

Geometrie

Grösse A B C D E F G H I J K L
S 380 590 135 455 74° 67° 1151 35 625 411 315 165
M 430 595 140 455 74° 67° 1162 50 630 415 315 165
L 480 600 145 455 74° 67° 1170 50 336 420 315 165

A Rahmengrösse
B Oberrohr horizontal mm
C Steuerrohr mm
D Kettenstreben mm
E Sitzwinkel Grad
F Steuerrohrwinkel Grad
G Radstand mm
H Vorbau mm
I Stack mm
J Reach mm
K Tretlagerhöhe mm
L Kurbellänge mm
