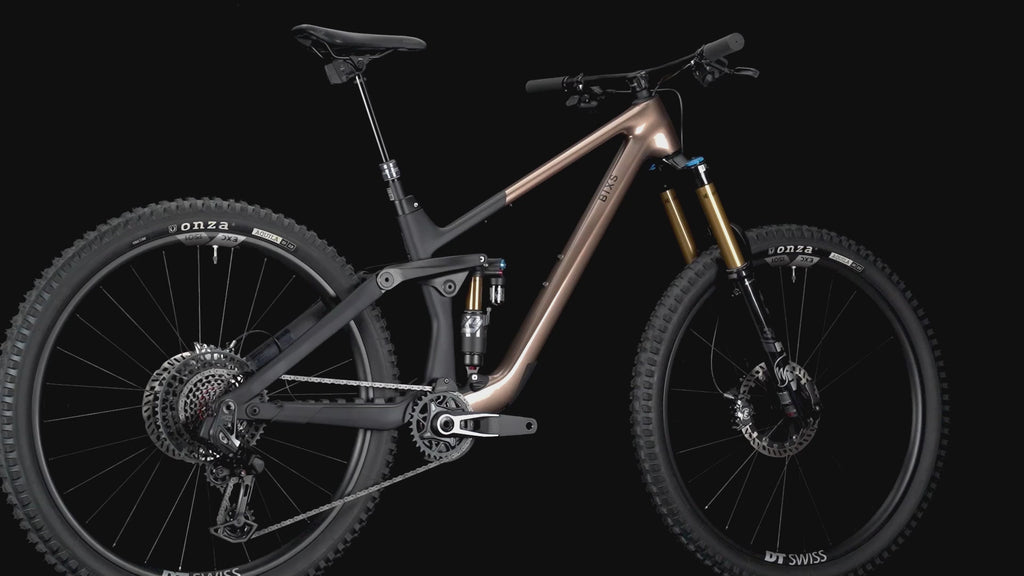

Spezifikationen Lane X

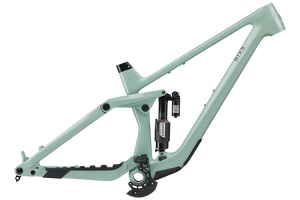

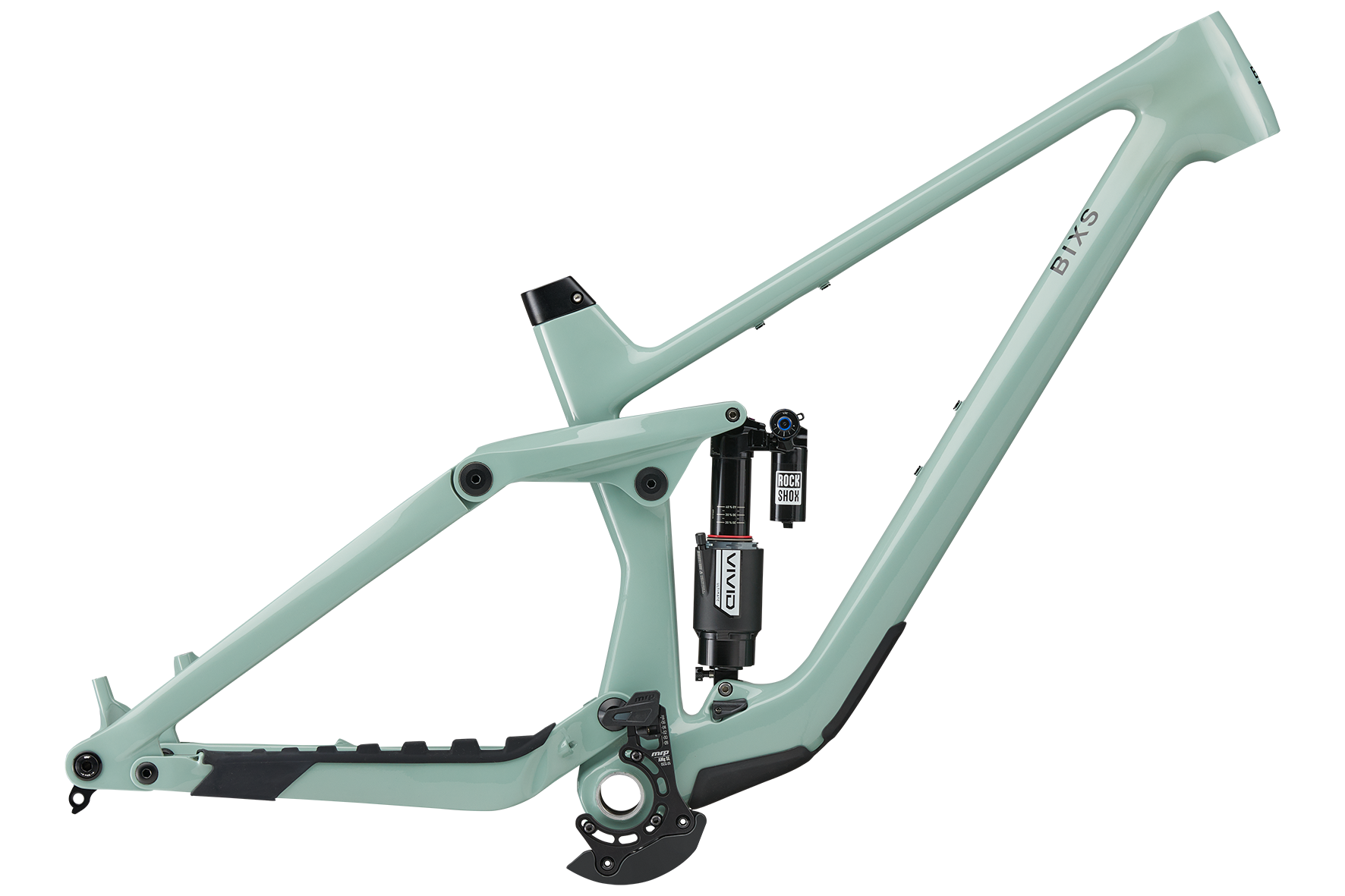

Rahmen ENDURO GEOMETRY, FULL CARBON FRAME, 160mm TRAVEL, DROPOUT 148x12mm BOOST, 29"
Gabel FOX 38 FLOAT FACTORY, KASHIMA, 15x110mm AXLE, TAPERED, GRIP2, TRAVEL: 170mm, 4-WAY ADJUSTABILITY
Dämpfer FOX FLOAT X2 PERFORMANCE, 2 POSITION LEVER, 230x65, HARDWARE: 30/20mmx8mm
Schaltwerk SRAM X01 EAGLE AXS, 12-SPEED
Schalthebel SRAM EC AXS CONTROLLER RIGHT HAND ROCKER, 2 BUTTON, 12-SPEED
Kurbelgarnitur SRAM X01 EAGLE BOOST, DUB, S: 30, OTHERS 32 TEETH
Innenlager SRAM BB DUB BSA 73 MTB
Kassette SRAM XG-1295 EAGLE, 10-52 TEETH, 12-SPEED BLACK
Kette SRAM CN-XO1 EAGLE 12-SPEED
Bremsen MAGURA MT7, 4-PISTON HYDRAULIC DISC BRAKE, F:203mm, R:203mm ROTORS
Bremshebel MAGURA MT7, 1-FINGER HC ALUMINIUM LEVER BLADE
Felgen DT SWISS WHEELSET SPLINE CARBON EXC-1501, 28 HOLES,  INNER WIDTH 30mm, 29"
Nabe vorne DT SWISS WHEELSET SPLINE CARBON EXC-1501, 15x110 BOOST, THRU AXLE
Nabe hinten DT SWISS WHEELSET SPLINE CARBON EXC-1501, 12x148 BOOST, THRU AXLE
Vorderreifen ONZA AQUILA, KEVLAR FOLDABLE, TUBELESS READY, 29x2.4"
Hinterreifen ONZA AQUILA, KEVLAR FOLDABLE, TUBELESS READY, 29x2.4"
Vorbau FASERWERK FULL CARBON COCKPIT
Lenker FASERWERK FULL CARBON COCKPIT, 800mm, 9° ANGLE, 15mm RISE
Steuersatz ACROS CUSTOMIZED FOR INTEGRATED CABLE ROUTING, 1.5" BLOCK LOCK
Sattelstütze ROCK SHOX REVERB AXS, S: 100mm, M: 125mm, L: 150mm, XL: 170mm TRAVEL, WIRELESS REMOTE, 31.6mm
Sattel ERGON SM10 ENDURO
Gewicht 15.2 KG

Geometrie

SIZE S M XL
A Reach 420 450 480 510
B Stack 619 628 642 660
C Top Tube 554 587 622 661
D Seat Tube 370 400 430 490
E Head Tube 90 100 115 135
F Fork Length 582 582 582 582
G Fork Offset 44 44 44 44
H Chainstay 440 440 440 450
I Seat Angle 77.8 77.7 77.5 77.1
J Head Tube Angle 64.5 64.5 64.5 64.5
K BB Drop 30 30 30 30
L BB Height 344 344 344 344
M Wheelbase 1188 1223 1259 1308
  Stem Length 35 35 35 50
  Crank Length 165 170 170 170



Körpergrösse 149 - 163 cm 159 - 178 cm 174 - 188 cm 185 - 200 cm
Rahmengrösse S M L XL
