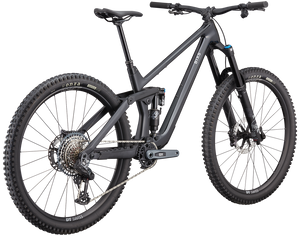

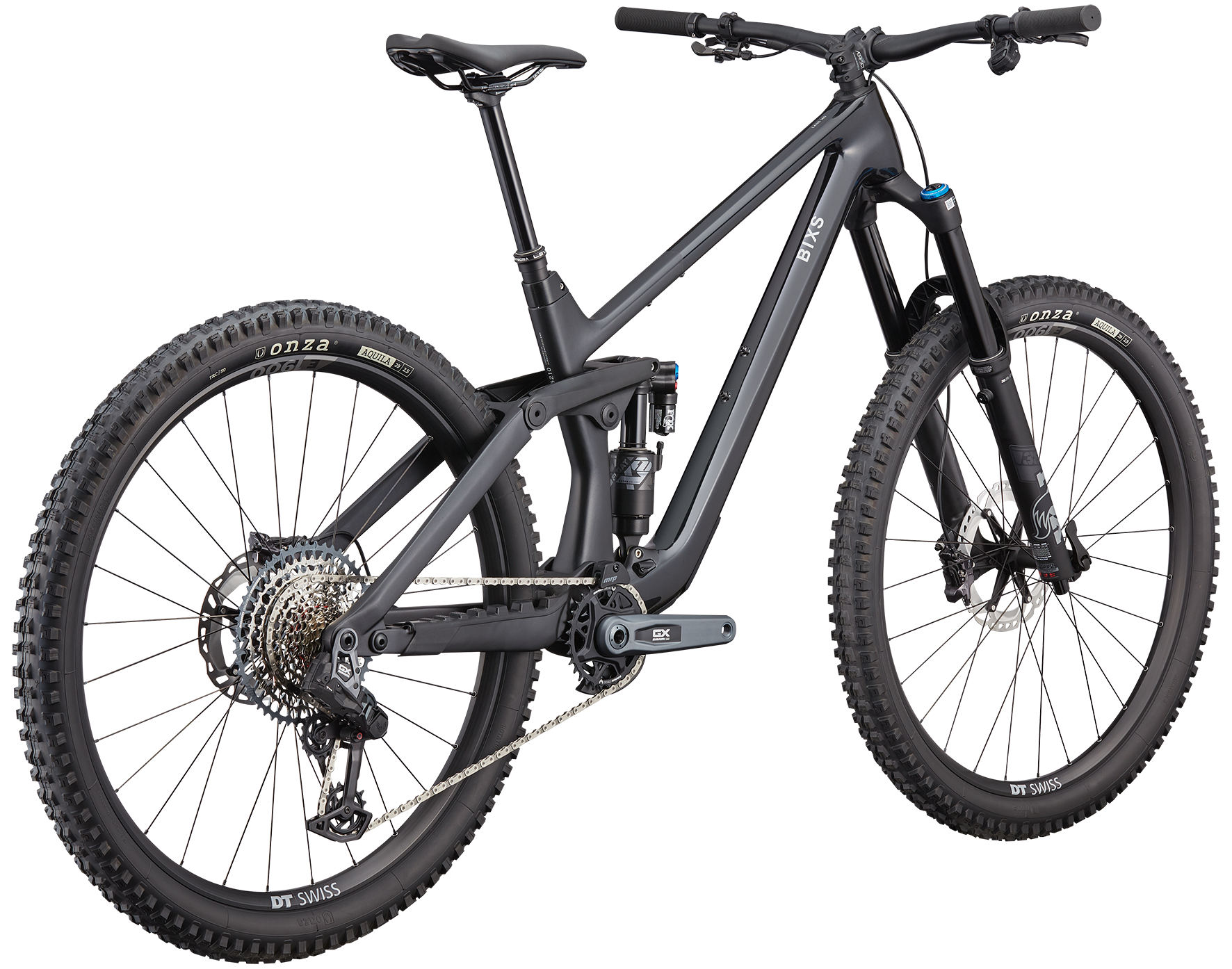

Spezifikationen Lane 160

Rahmen ENDURO GEOMETRY, FULL CARBON FRAME, 160mm TRAVEL, DROPOUT 148x12mm BOOST, 29"
Gabel FOX 38 FLOAT PERFORMANCE, 15x110mm AXLE, TAPERED, GRIP2, TRAVEL: 170mm, 4-WAY ADJUSTABILITY
Dämpfer FOX FLOAT X2 PERFORMANCE, 2 POSITION LEVER 230x65, HARDWARE: 30/20mmx8mm
Schaltwerk SRAM GX EAGLE AXS, 12-SPEED
Schalthebel SRAM EC AXS CONTROLLER RIGHT HAND ROCKER, 2 BUTTON, 12-SPEED
Kurbelgarnitur SRAM GX EAGLE BOOST, DUB, S: 30, OTHERS 32 TEETH
Innenlager SRAM BB DUB BSA 73 MTB
Kassette SRAM XG-1295 EAGLE, 10-52 TEETH, 12-SPEED BLACK
Kette SRAM CN-GX EAGLE 12-SPEED
Bremsen SHIMANO XT BR-M8120, 4-PISTON HYDRAULIC DISC BRAKE, RESIN PADS, F:203mm, R:180mm ROTORS, ICE TECH
Bremshebel SHIMANO XT BL-M8100
Felgen DT SWISS WHEELSET SPLINE E-1900, 28 HOLES, INNER WIDTH 30mm, 29"
Nabe vorne DT SWISS WHEELSET SPLINE E-1900, 28 HOLES, 15x110mm THRU AXLE
Nabe hinten DT SWISS WHEELSET SPLINE E-1900, 28 HOLES, 12x148mm BOOST, THRU AXLE
Vorderreifen ONZA AQUILA, KEVLAR FOLDABLE, TUBELESS READY, 29x2.4"
Hinterreifen ONZA AQUILA, KEVLAR FOLDABLE, TUBELESS READY, 29x2.4"
Vorbau RACE FACE AEFFECT R, 0°ANGLE, 35mm CLAMP
Lenker RACE FACE TURBINE R, 780mm/800mm, 20mm RISE, 8° BACKSWEEP, 35mm
Steuersatz ACROS CUSTOMIZED FOR INTEGRATED CABLE ROUTING, 1.5" BLOCK LOCK
Sattelstütze KIND SHOCK LEV INTEGRA, S: 100mm, M: 125mm, L: 150mm, XL: 175mm TRAVEL, SHIMANO REMOTE, 31.6mm
Sattel ERGON SM10 ENDURO
Gewicht 15.6 KG

Geometrie

SIZE S M XL
A Reach 420 450 480 510
B Stack 619 628 642 660
C Top Tube 554 587 622 661
D Seat Tube 370 400 430 490
E Head Tube 90 100 115 135
F Fork Length 582 582 582 582
G Fork Offset 44 44 44 44
H Chainstay 440 440 440 450
I Seat Angle 77.8 77.7 77.5 77.1
J Head Tube Angle 64.5 64.5 64.5 64.5
K BB Drop 30 30 30 30
L BB Height 344 344 344 344
M Wheelbase 1188 1223 1259 1308
  Stem Length 35 35 35 50
  Crank Length 165 170 170 170



Körpergrösse 149 - 163 cm 159 - 178 cm 174 - 188 cm 185 - 200 cm
Rahmengrösse S M L XL
